Ayzeze: Lad e-sykkelen eller e-sparkesykkelen din trygt
• Ikke la batteriet være uten tilsyn når du er borte fra hjemmet eller sover.
• Ikke dekk til ladere eller batterier under lading.
• Ikke overbelast uttak eller bruk uegnede skjøteledninger.
• Ikke lad eller oppbevar batterier i direkte sollys eller i områder med temperaturer over 45⁰C.
• Ikke lad batterier i nærheten av brennbare materialer eller farlige stoffer.
• Når ladingen er fullført, koble alltid fra laderen.
• Bruk alltid kun den originale laderen som er egnet for batteriet.
• Kontakt alltid en profesjonell når du bygger om din e-sykkel eller e-sparkesykkel.
• Sjekk alltid batteriet (og laderen) for synlige skader.
-----

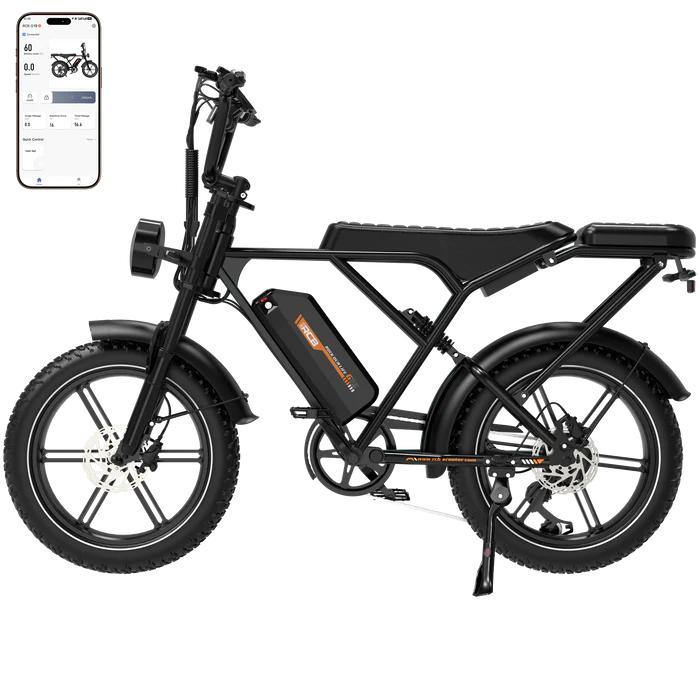

1. Basic parameters
Model: 750W 48V 20.8Ah 20 × 4.0 "Tire
Body material: Iron frame

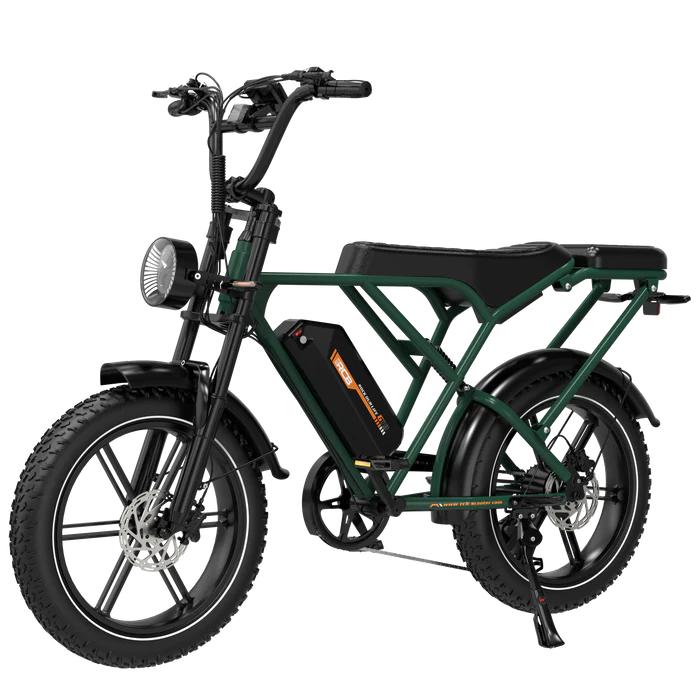

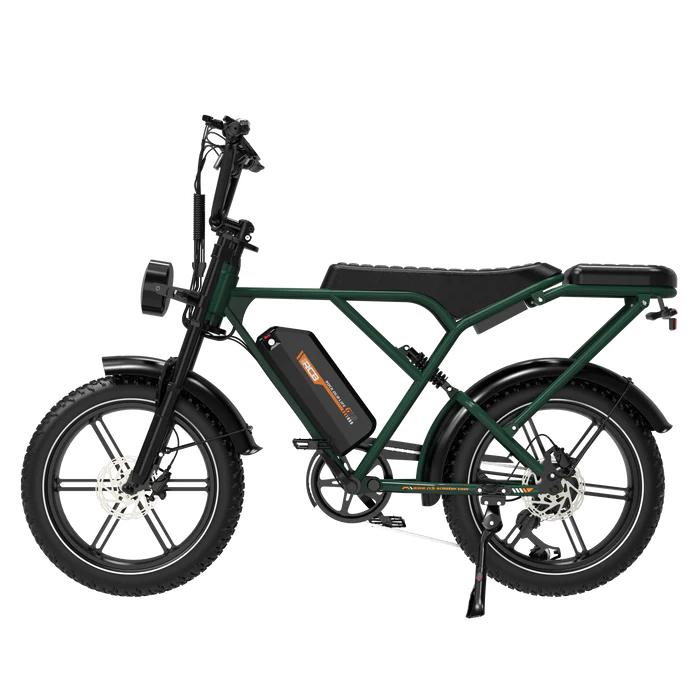

Color: Black, Green
Unfolding dimensions: 1640mm × 675mm × 1180mm
Packaging size: 1445mm × 270mm × 865mm
Gross weight/net weight: 46.79kg/43.18kg
Maximum load capacity: 120kg
Top speed: 25km/h (15.6mph)
Range: 60-90km (affected by load, temperature, road conditions, etc.)
2. Battery and motor
Battery capacity: 20.8Ah (998.4Wh)
Rated voltage: 48V
Charging time: 7-8 hours
Motor type: High speed gear brushless motor
Motor power: 750W (the labeling of 0.25kW may be incorrect, it should actually be 750W)
Motor no-load speed: 430 ± 10r/min
3. Safety and Handling
Braking method: front disc brake+rear disc brake
Tire specification: 20 × 4.0 inch inflatable tire (wide tire design, strong stability)
Front fork: shock-absorbing front fork
Gear: 7-speed transmission
Waterproof rating: IP54
Applicable temperature: -10 ° C~45 ° C
Maximum climbing angle: 25 degrees
4. Other configurations
Instrument display: Multi functional LCD screen
Headlights: Standard
Charger: Input 100-240V/Output 54.6V 3A
1️⃣Long endurance and powerful performance
750W high-speed brushless motor, suitable for European hilly terrain, with a climbing ability of up to 25 °.
48V/20.8Ah ultra large battery, with a range of 60-90km, far exceeding ordinary electric bicycles (high commuting demand in Europe).
2️⃣Safe and stable design
Front and rear dual disc brakes+20 × 4.0 wide tires, with strong grip on wet and slippery roads (suitable for rainy climates in Europe).
IP54 waterproof, not afraid of rain and snow weather.
3️⃣Comfortable riding experience
The shock-absorbing front fork and wide tire design effectively absorb bumps, suitable for cycling on European cobblestone roads and in the countryside.
7-speed transmission system, flexible to cope with urban and mountainous road conditions.
EU Compliance
The maximum speed is 25km/h, which complies with the European Electric Power Assist Vehicle (EPAC) regulations.
Large capacity battery (998.4Wh), meeting long-distance commuting needs.
Practical Details
Multi functional LCD instrument panel (displaying speed, battery level, mileage, etc.), in line with European user habits.
Iron frame, sturdy and durable, suitable for carrying loads or freight needs.
