Feature:

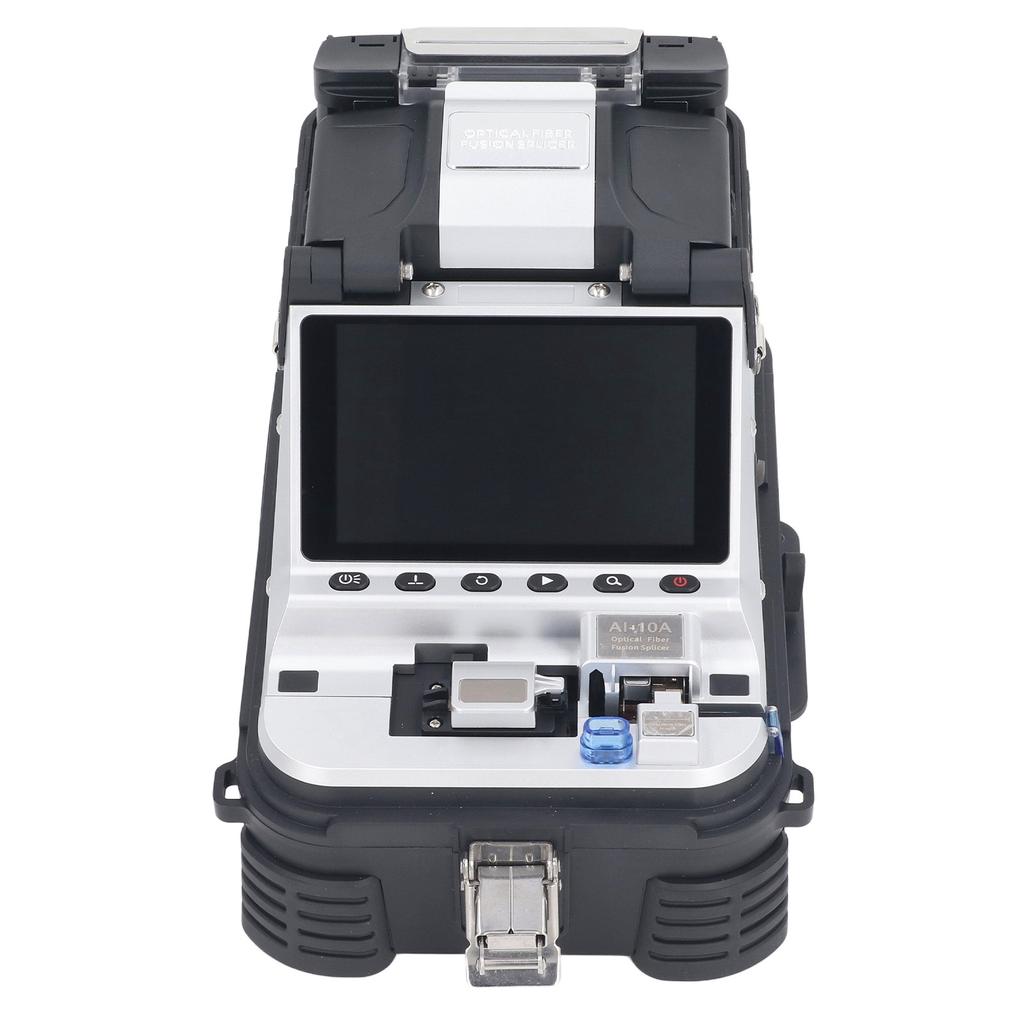

1. Inch Colour Display: This fibre optic fusion splicer adopts inch colour display, which can be operated by touch screen, clear display, convenient and practical.
2. Compact And Portable: This optical fiber welding splicing machine is small in size and light in weight, which is very convenient to carry around and use.
3. High Accuracy Cutting Knife: This optical fiber splicing machine adopts electric high accuracy cutting knife, which is fine cutting and high efficiency.
4. Fast Heating: This fibre fusion splicer can support seconds fast splicing and 15 seconds fast heating, the heating time can be set, the heating temperature can be adjusted, with super low splicing loss, 0.02dB (SM), 0.01dB (MM), 0.04dB (DS NZDS).
. Wide Application: This fusion splicer machine has a wide range of applications and can be used for fusion splicing of single mode, multi mode, bare optical fibre, pigtailed optical fibre, skinned optical fibre, jumper cables and invisible optical fibre.
Specification:
Item Type: Fibre Optic Fusion Splicer
Material: Aluminium Alloy, ABS
Brush Material: Beech Wood
Fibre Alignment: , Cladding
Motor Quantity: 6 Motors
Fusion Splicing Time: Seconds
Heating Mode: 15 Seconds, Can be customised according to the need and external environment.
Battery Capacity: Rechargeable Lithium Battery 7800mAh x 1 ( Shipped With Built In Battery )
Red Light Source: Power: 15mw, 2HZ Flashing and Normal Light Mode
Power Meter: Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Measuring Range: -50-26dbm, Absolute Error: <0.3dB (-50dBm-3dBm Range)
Applicable Fibre: Single Mode Fibre (SMF, .652), Bending Insensitive Fibre (BIF, .657)
Suitable for fusion splicing of single mode, multi mode, bare optical fibre, pigtailed fibre, skinned fibre, jumper wire, invisible optical fibre.
Cladding Diameter: 80-150um
Splice Loss: 0.02dB (SM), 0.01dB (MM) 0.04dB (DS, NZDS)
Fusion Splicing Mode: Auto Alignment, Conventional, High Accuracy Fusion Splicing
Fusion Splicing Mode: Automatic, Semi Automatic, Arc Fusion Splicing, Real Time Control and Correction of Fusion Arc
Fibre Optic Cutting Knife: The host comes with an electric high accuracy cutting knife.
Fibre Optic Fixture: 3 In 1 Fixture, No need to replace, suitable for singlemode, multimode, multi cable, bare fibre.
Fibre Optic Fixture: 3 In 1 Fixture for singlemode, multimode, multicore cable, bare fibre, pigtail, jumper wire, skinned wire.
Magnification: 320x (X Axes or Y Axes Single Display), 200x (XY Axes Double Display)
Fibre Diameter: Cladding Diameter: 80-150??m, Coating Diameter: 100-1000??m
Cutting Length: Cladding Below 250??m: Approx. 8-16mm/0.31-0.63in, Cladding 250-1000??m: Approx. 16m/0.63in
Heat Shrinkable Tubing: Approx. 60mm/2.36in, 50mm/1.97in, 40mm/1.57in, 25mm/0.98
Tensile Testing: Standard 2N
Display: Inch Colour Display
Power On Time: 1 Second, Power on to enter the working mode.
Data Storage: Unlimited, machine storage 1000 groups, beyond the part can be stored in the server, can export data.
Wireless Communication: Based on Bluetooth 4.2 Protocol Standard, Working Frequency Band 2.4GHz, Maximum Distance 60m.
Software Upgrade: Mobile Phone APP Internet Update, Open Bluetooth Synchronous Upgrade Machine Software
Package List:
1 x Tool Box
1 x Fusion Splicer
1 x Toolbox Strap
1 x Fusion Splicer Carrying Strap
1 x Brush
2 x Ascending Combination Chains
1 x Fibre Optic Peeler
10 x Cleaning Cotton
2 x Hex Wrenches
2 x Spare Electrodes
1 x Storage Box
1 x Empty Bottle of Alcohol
1 Adapter
1 Bundle x Single Mode Optical Fibre
2 x Double Sided Adhesive
1 x Manual
1 Cable
