Feature:
1. The use of high heat dissipation aluminum alloy , good heat dissipation to protect the components and improve work efficiency.
2. Wide range of use, can be used in LED power supply, medical power supply, display power supply.
3. Also can be used in industrial control field, power equipment, instrumentation, solar photovoltaic power supply.
4. Reduce the external volume and optimize the components to stable performance and long service life.
5. Lightweight design, on internal configuration, more stable performance and higher efficiency.
Specification:

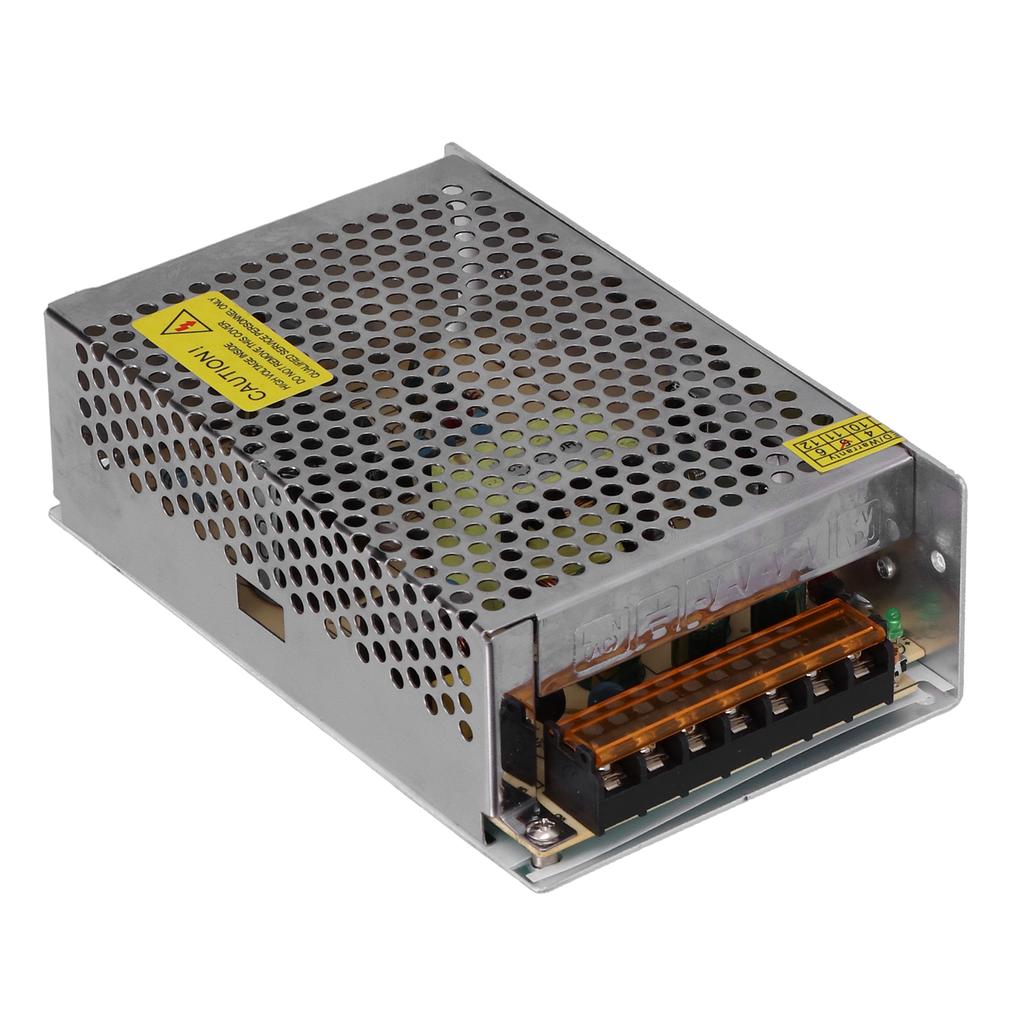

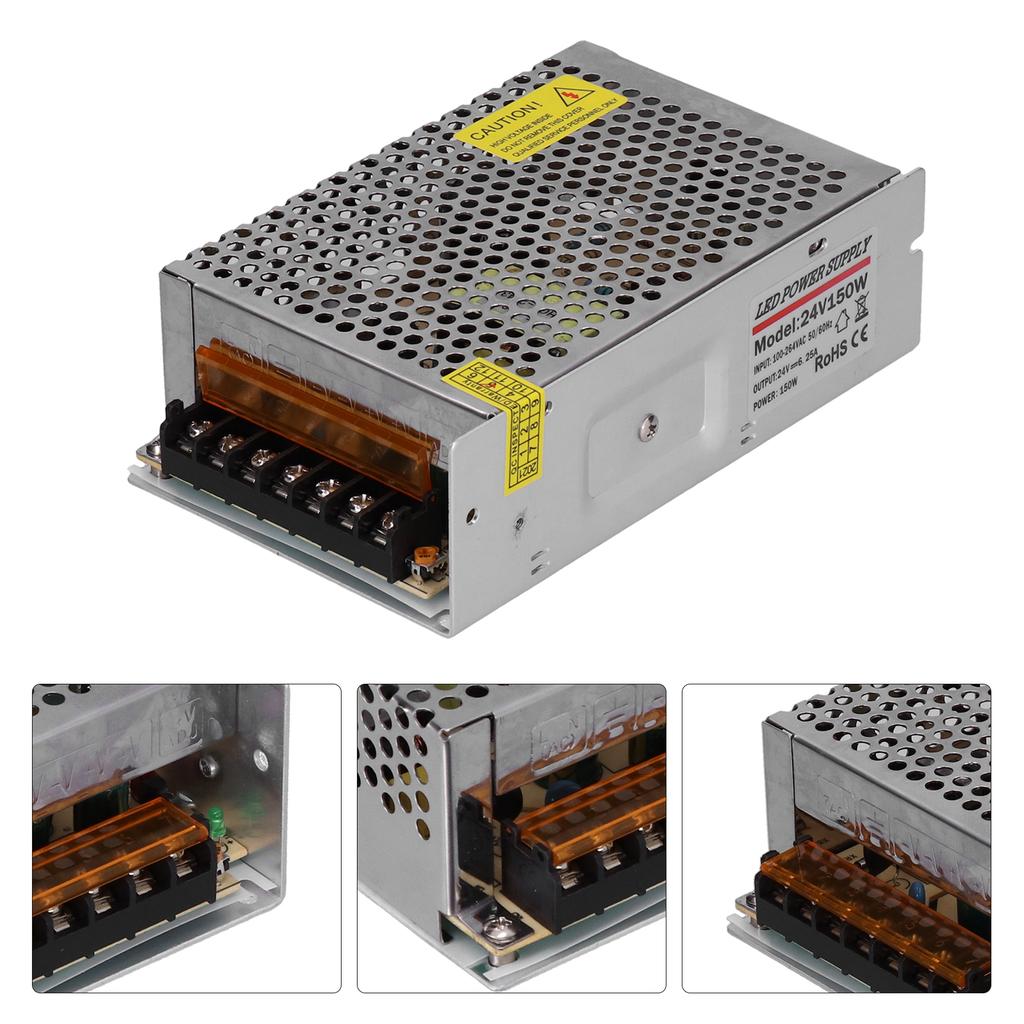

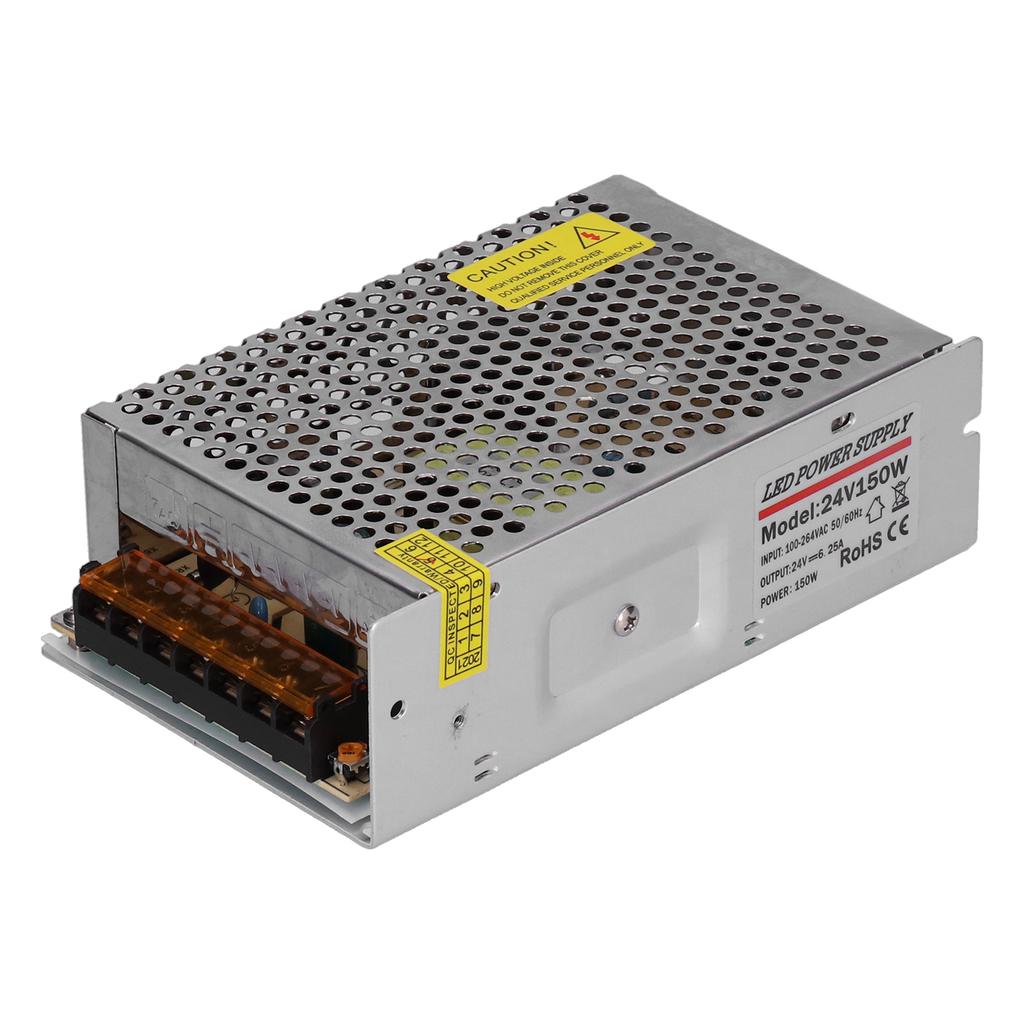

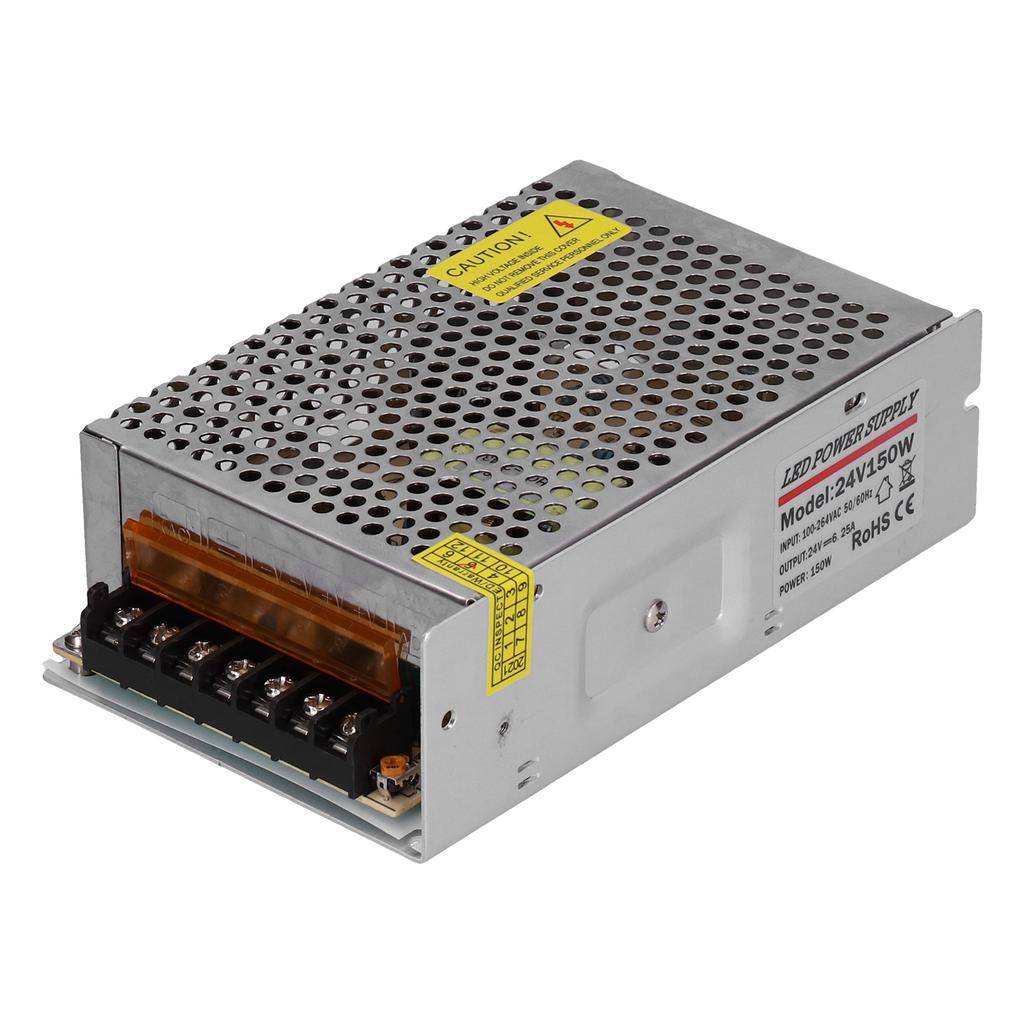

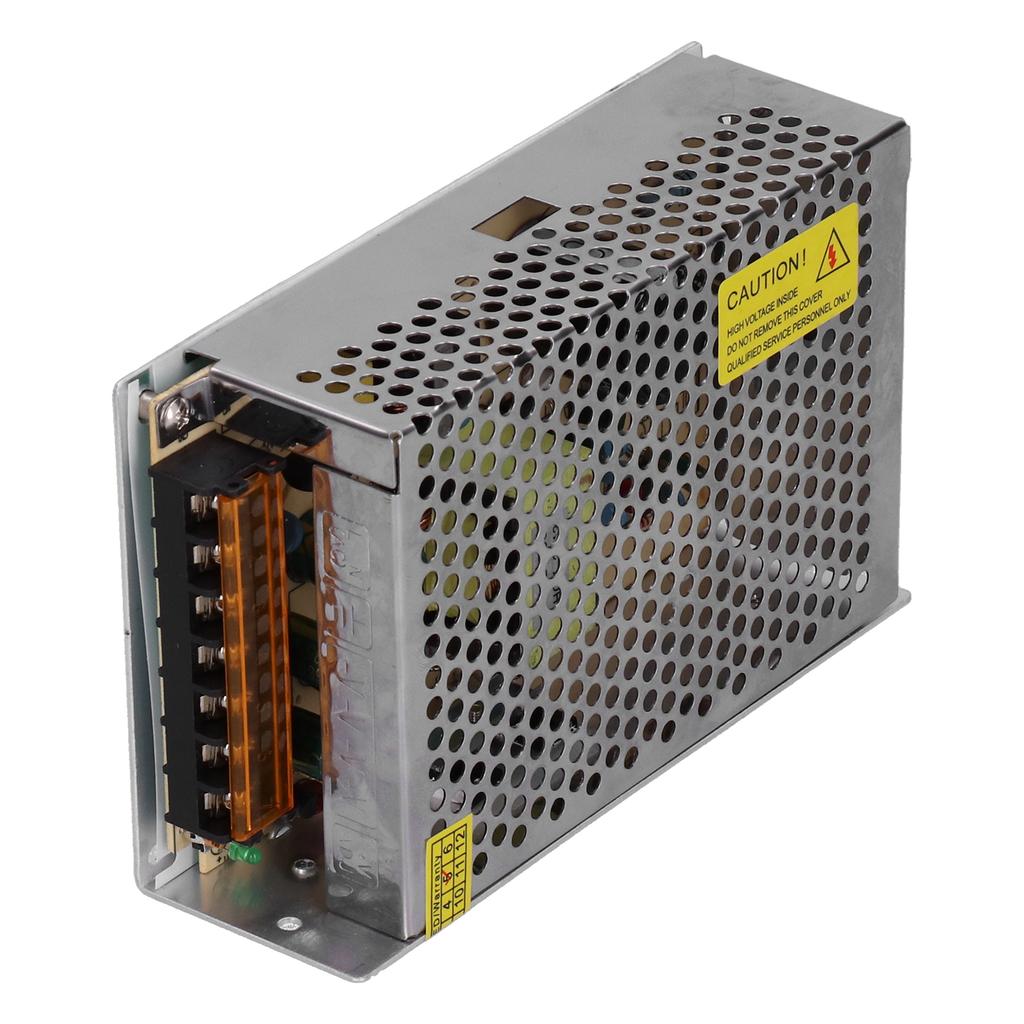

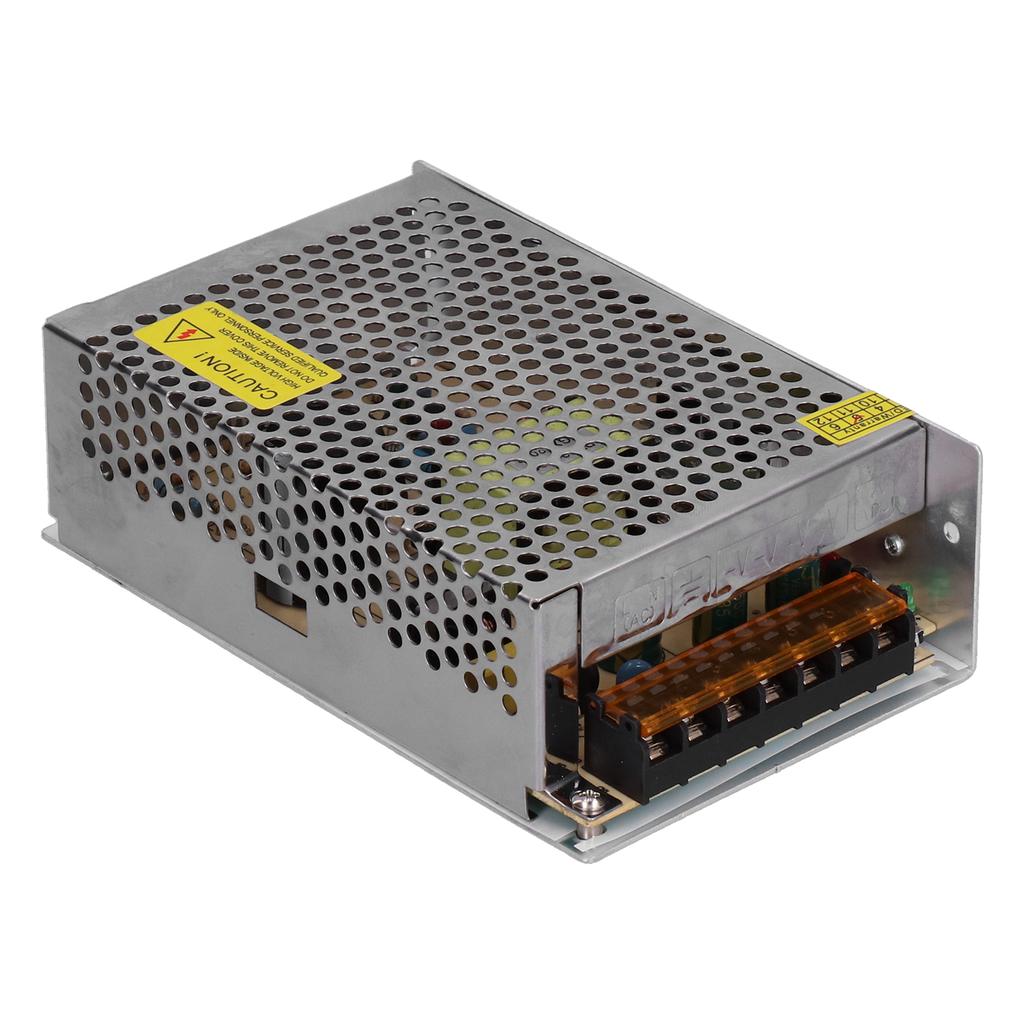

Item Type: Switching Power Supply Driver
Material: Aluminum Alloy
Model: YY-150-24
Input Voltage: AC 100-264V
Output Voltage: 24V
Output Current: 6.25A
Error Range: ±1%
Adjustable Pressure Range: ±5%
Power: 150W
Waterproof Rating: IP20
Start, Rise, Hold Time: 200ms, 50ms, 20ms
Working Temperature and Humidity: -10-60℃, 20%-90%RH
Storage Temperature and Humidity: -20-80℃, 10%-95%RH
Size: Approx. 160 x 98 x 50mm/6.3 x 3.86 x 1.97in
Uses: LED power supply, medical power supply, display power supply, industrial control field, power equipment, instrumentation, solar photovoltaic power supply
How to Use:
Before using the switching power supply product, please read the instruction carefully to check whether the current and voltage of the switching power supply and the load current and voltage meet the requirements for use.
1. When using the switching power supply, be sure to pay attention to the internal high voltage part of the machine, and do not touch the internal components of the machine. Non-professionals should not disassemble the power supply for maintenance, otherwise there is a danger of electric shock. Before use, read the relevant wiring marks
2. When wiring, please turn off the input power.
3. To safe use and reduce interference, please that the ground terminal FG is reliably grounded. (The grounding wire diameter is reasonably selected according to the input voltage and output power)
4. Check whether the mounting screws are in contact with the power supply board components, and measure the insulation resistance between the housing and the input/output to avoid electric shock.
5. Most of the LED switching power supply housing is the heat dissipation part. When installing, increase the contact area between the housing and the case to facilitate heat dissipation and extend the life of the power supply. If the power supply has a built-in fan, the fan\'s vent should not be blocked.
6. Before the installation is complete, please carefully check whether the wiring is correct, and prevent incorrect or reverse connections. Re-enable after confirming that it is correct
Package List:
1 x Switching Power Supply Driver
