【Cautions for using electrical products】
When using electrical appliances, please note that the voltage is different from that of Japan, which may cause malfunctions.
Since the plug type is Japan type(A or B type), please check the voltage and use a transformer.
Please note that a transformer is different from a conversion adapter.
We are not responsible for malfunctions caused by use without a transformer.
【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------

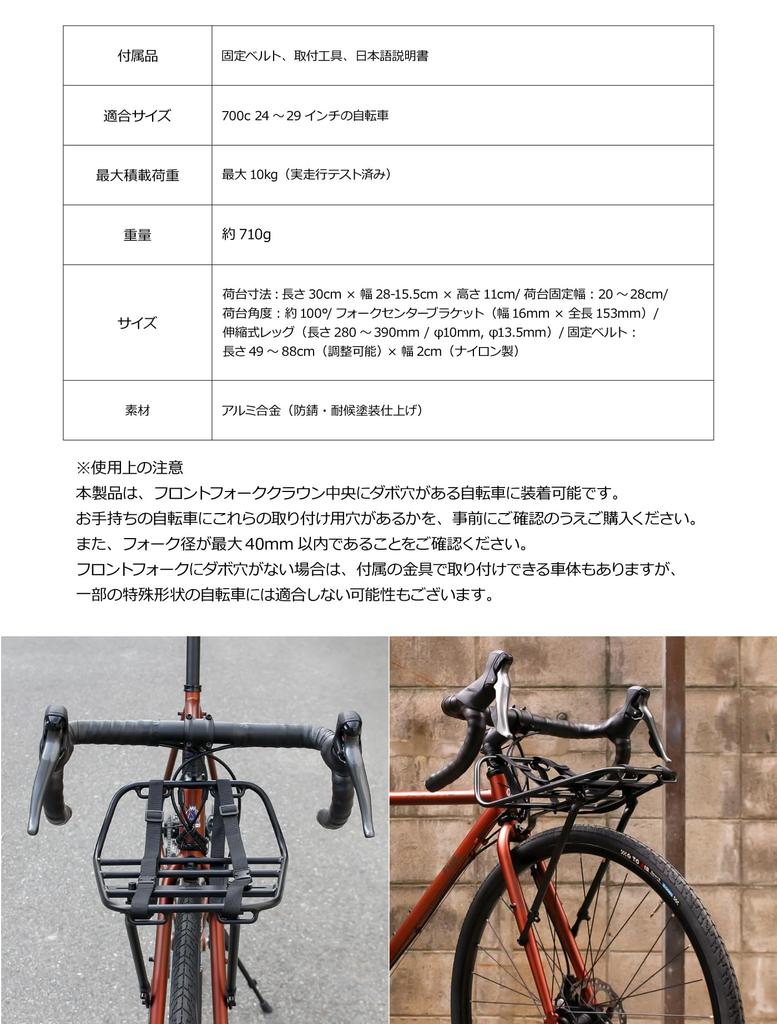

[Product Contents] Front carrier [Accessories] Fixing straps, installation tools, Japanese instructions [Compatible Sizes] 24-29 inch bicycles [Maximum Load Capacity] Up to 10kg (Tested in actual riding conditions) [Weight] Approximately 710g [Material] Aluminum alloy (rust-resistant and weather-resistant paint finish)

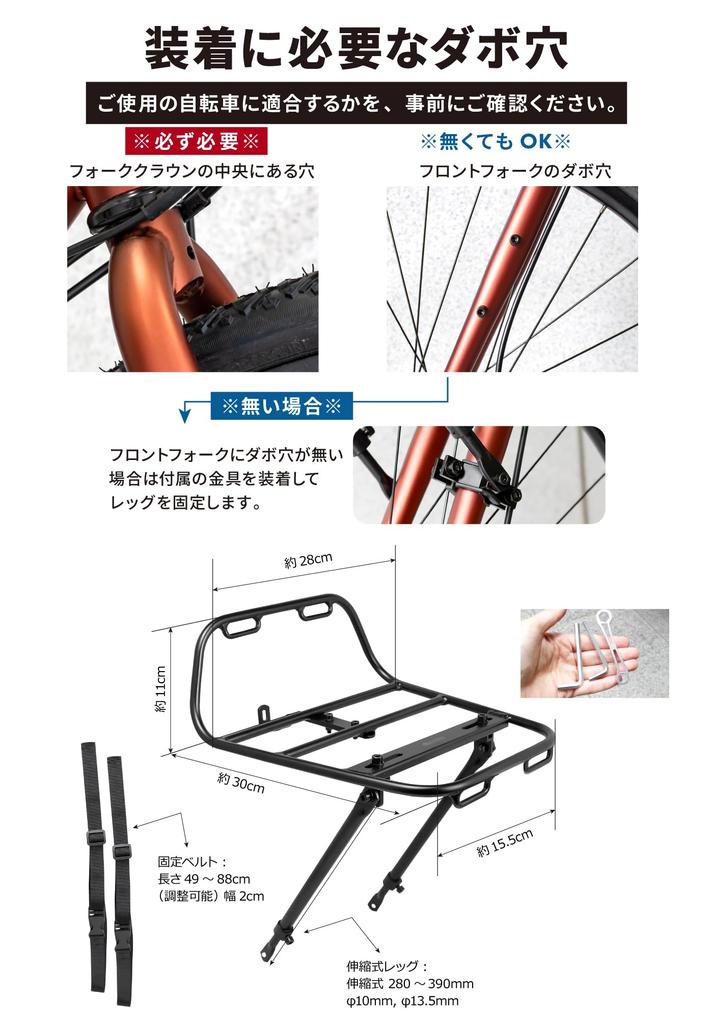

[Size] Rack dimensions: Length 30cm x Width 28-15.5cm x Height 11cm / Rack mounting width: 20-28cm / Rack angle: Approximately 100° / Fork center bracket (Width 16mm x Total Length 153mm) / Telescopic legs (Length 280-390mm / φ10mm, φ13.5mm) / Mounting strap: Length 49-88cm (adjustable) x Width 2cm (Nylon) [Usage Precautions] This product is compatible with bicycles that have a mounting hole in the center of the front fork crown. Please check before purchasing to ensure your bicycle has these mounting holes. Also, please make sure the fork diameter is no more than 40mm. If your front fork does not have a mounting hole, the included hardware may be able to mount it to some bicycles, but it may not fit some bicycles with unusual shapes.
[Highly versatile "three-point support" fixing structure] Installation requires a central dowel hole on the fork crown (top of the fork). Even if your bike does not have dowel holes on either side, the three-point support structure secures the rack to the fork blade with the included dedicated bracket, providing excellent stability. Compatible with a wide range of models.

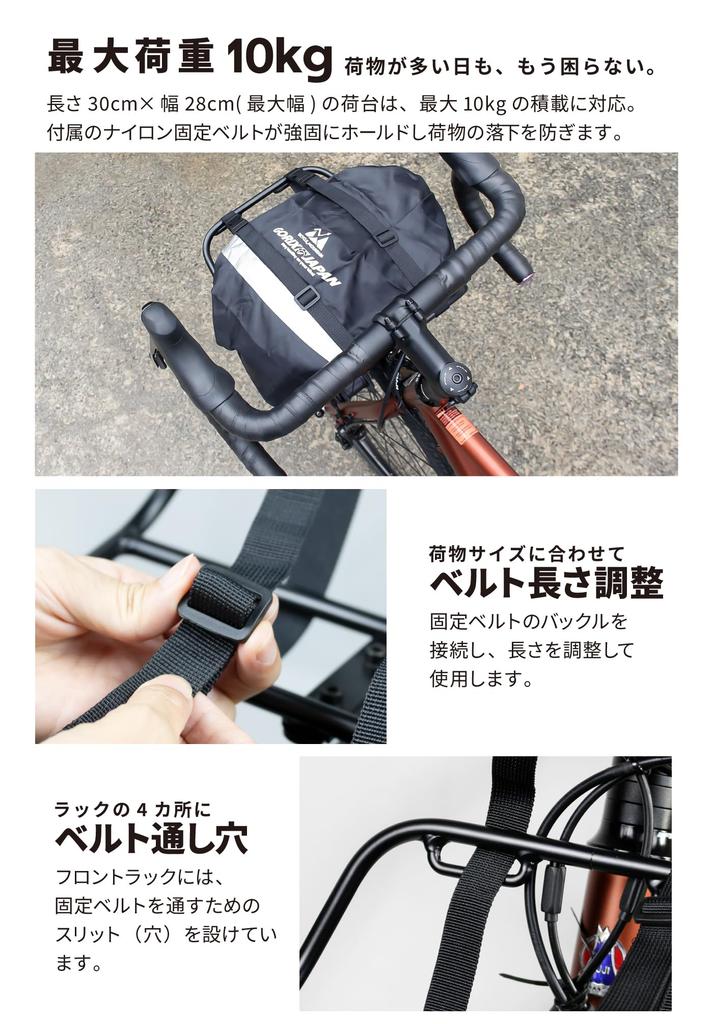

[Maximum 10kg Capacity & Secure Load with Secure Straps] The cargo bed measures 30cm long and 28cm wide (maximum width) and can accommodate a maximum load of 10kg. It also comes with a nylon secure strap that easily and securely holds shopping bags and small purses, preventing them from falling out while driving.

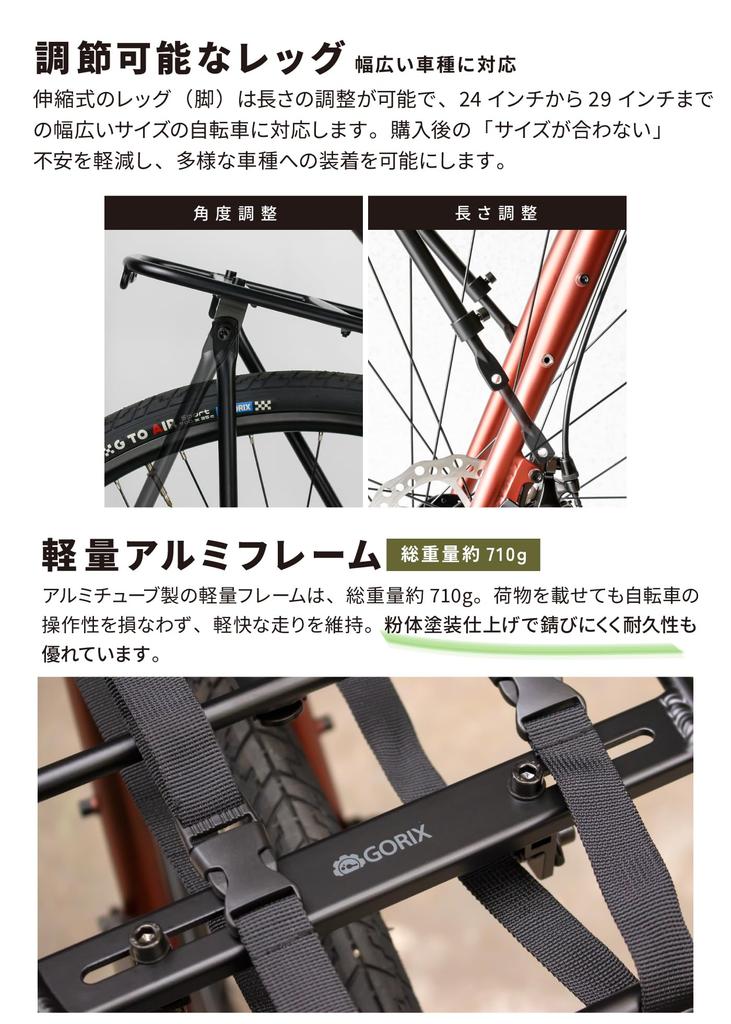

[Adjustable legs for bikes from 24 to 29 inches] The telescopic legs can be adjusted to fit a wide range of bike sizes, from 24 to 29 inches. This eliminates the worry of buying the wrong size and allows it to be installed on a variety of bikes.

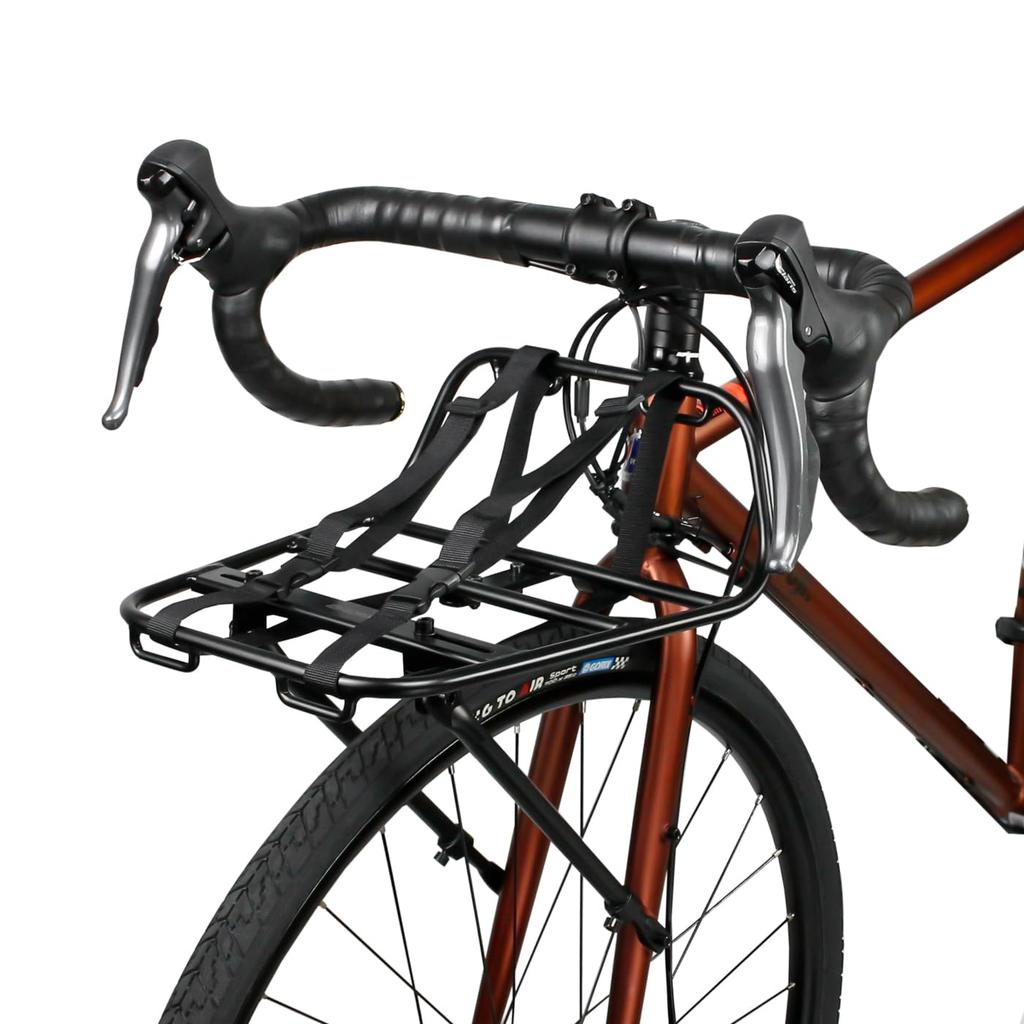

The GFR430 front carrier is a lightweight aluminum carrier compatible with a wide range of 24- to 29-inch road bikes, cross bikes, and mountain bikes. Installation requires a central dowel hole in the fork crown, but no dowel holes on either side of the front fork. Using the included dedicated bracket, the carrier secures to the central dowel hole and the caliper brake bolt on the fork blade, creating a three-point support structure that can stably carry up to 10 kg. Despite its light weight of approximately 710 g, the included straps provide excellent cargo support. This all-in-one set is ideal for beginners who want to easily transport their luggage, whether commuting to work or school, or for light weekend touring.
