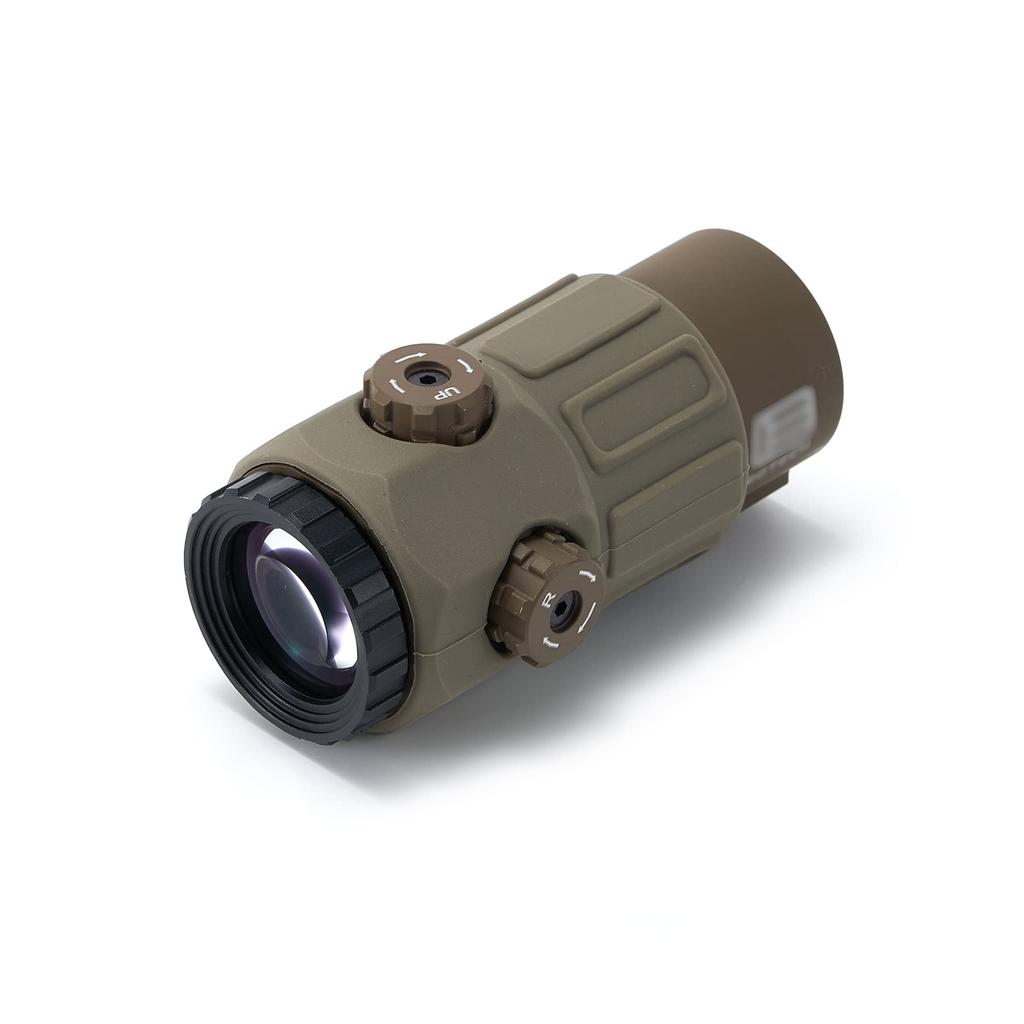

STS Mount Set: EO Type G45 Magnifier Replica 5x Magnification This is a replica of the compact "G45 Magnifire" magnifier with a lens cover. Use the G45 with a red dot or holographic sight to create a 5x magnification scope.
The included STS mount allows you to switch between 1x and 5x magnification with a single touch.
It's an all-around tool that can be used at any distance.
Clear Field of View: The compact, high-performance lens provides a clear, bright field of view.
Long Eye Relief: The long 2.6-inch eye relief allows for natural sighting without forcing your face too close to the lens. It can also be used with thicker goggles.
Note:
The G45 does not have a zeroing function to adjust ballistics. Zeroing depends on the associated red dot or holographic sight, so adjusting the G45 will not affect ballistics. ⇒ First, properly zero the red dot or holographic sight, then center the G45. Focus Adjustment:
Adjust the focus by turning the knurled dial (focus adjustment dial) on the eyepiece side.
Turn the dial between your thumb and index finger until the subject is clearly visible.

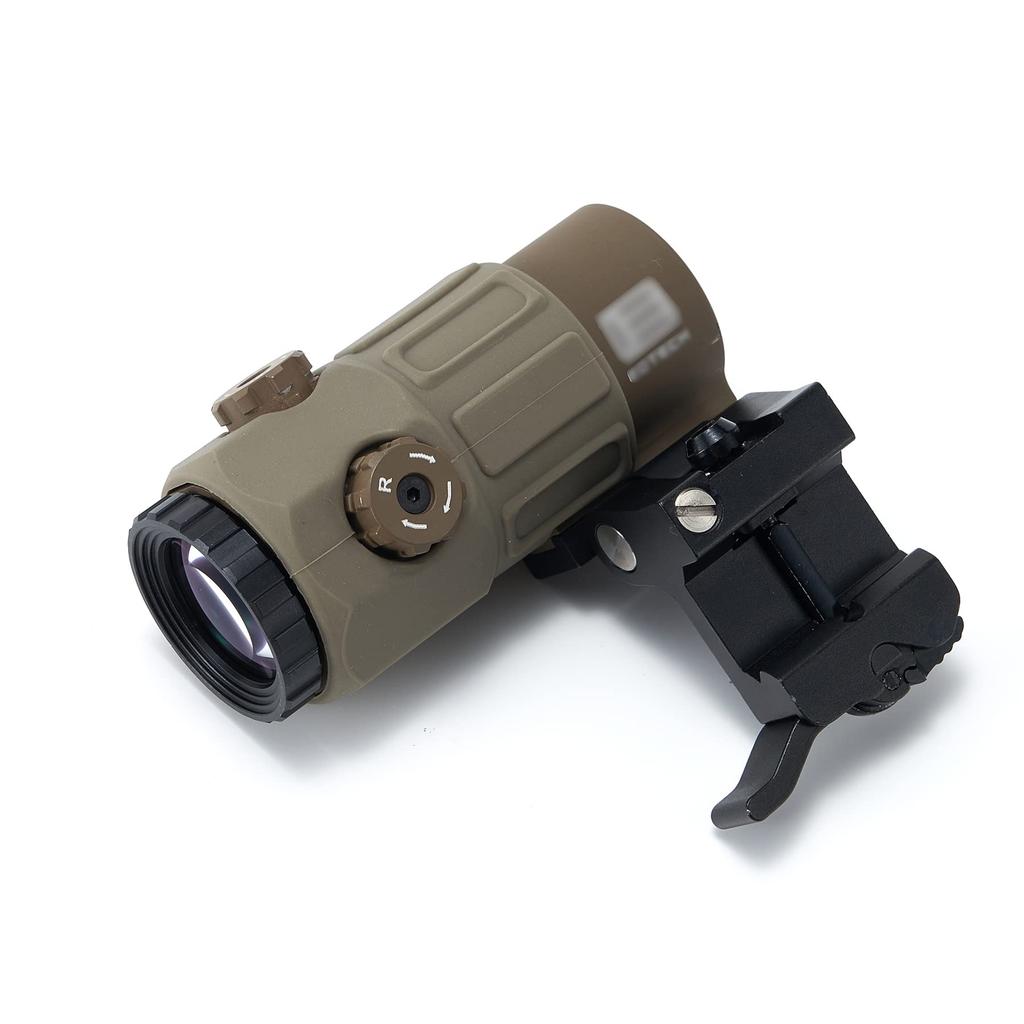

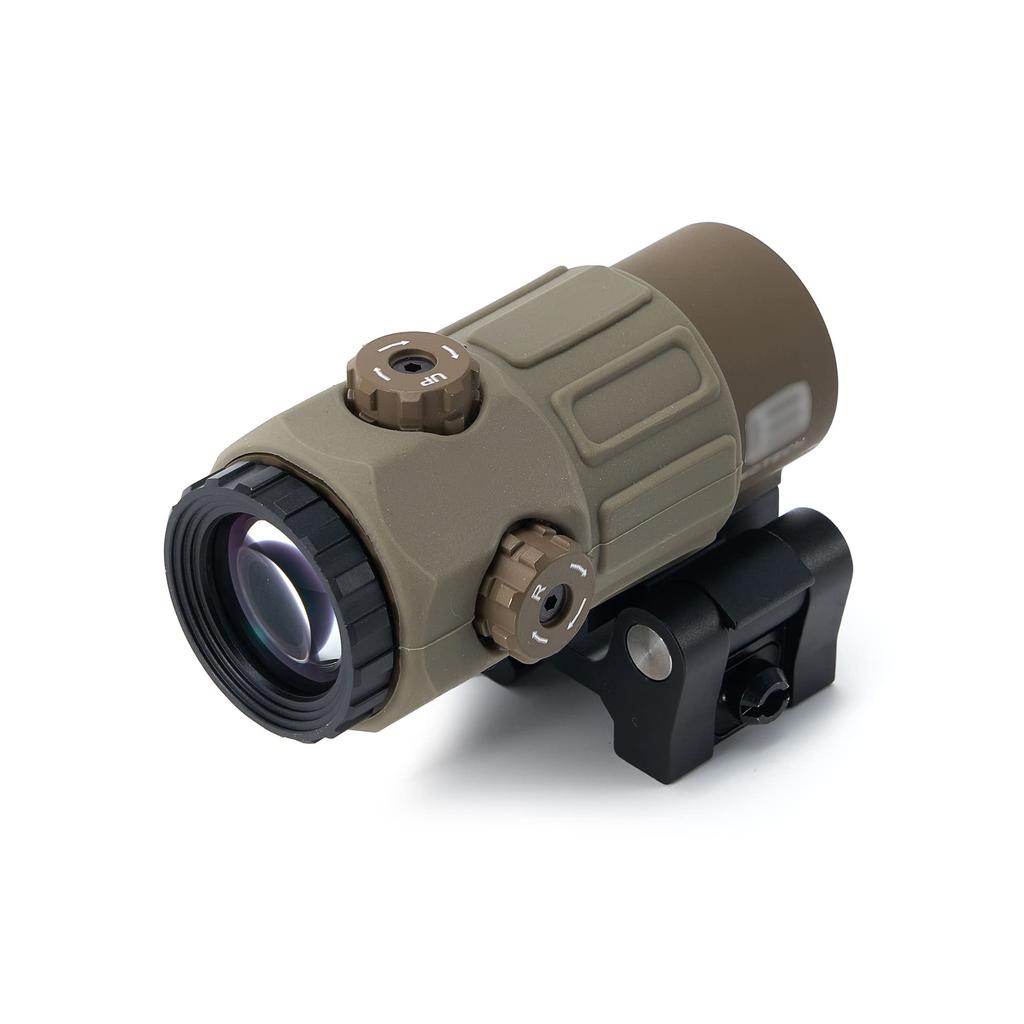

STS (Switch To Slide) Mount
Easily engage or disengage the booster by simply gripping the G45 body with your hand and tilting or lifting it. The swing operates smoothly with little force. It automatically locks into place with an audible click.
Note: It is not as durable as the real thing.
Assembly Instructions

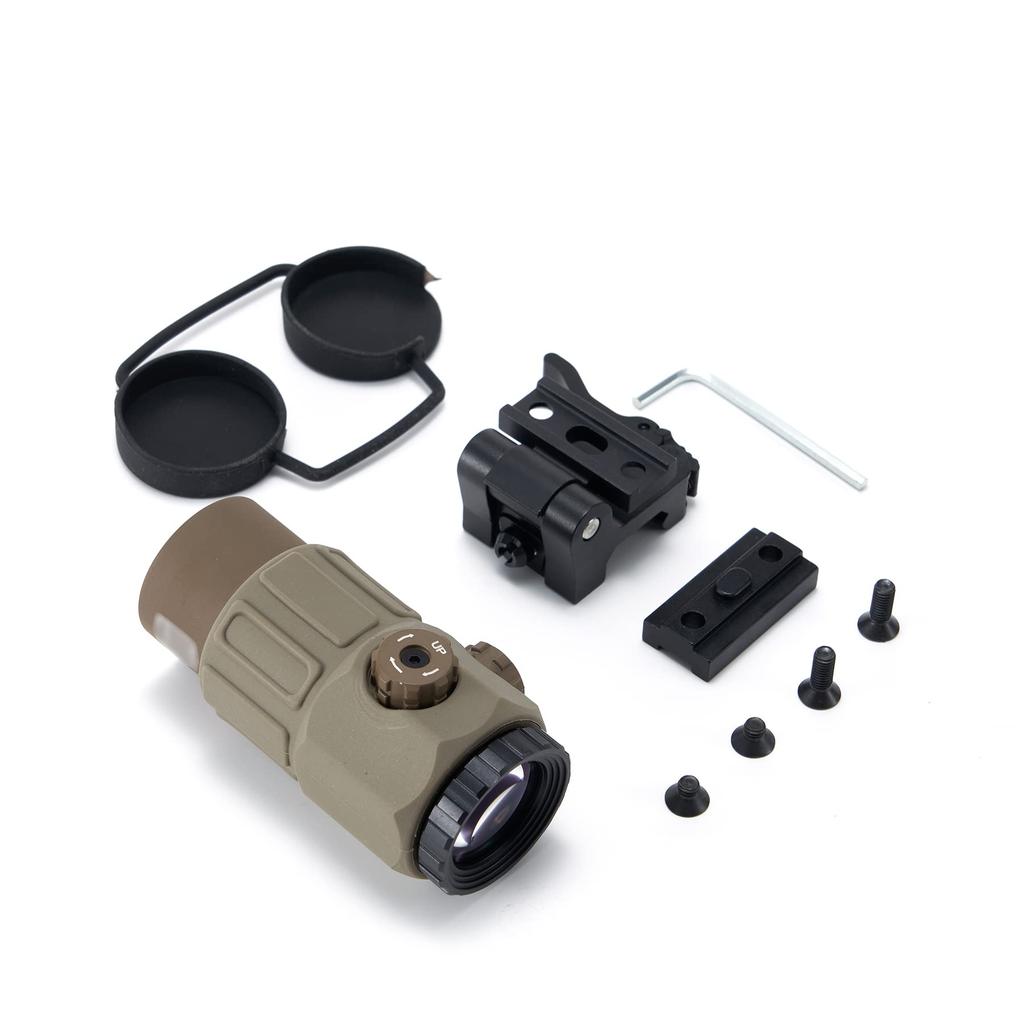

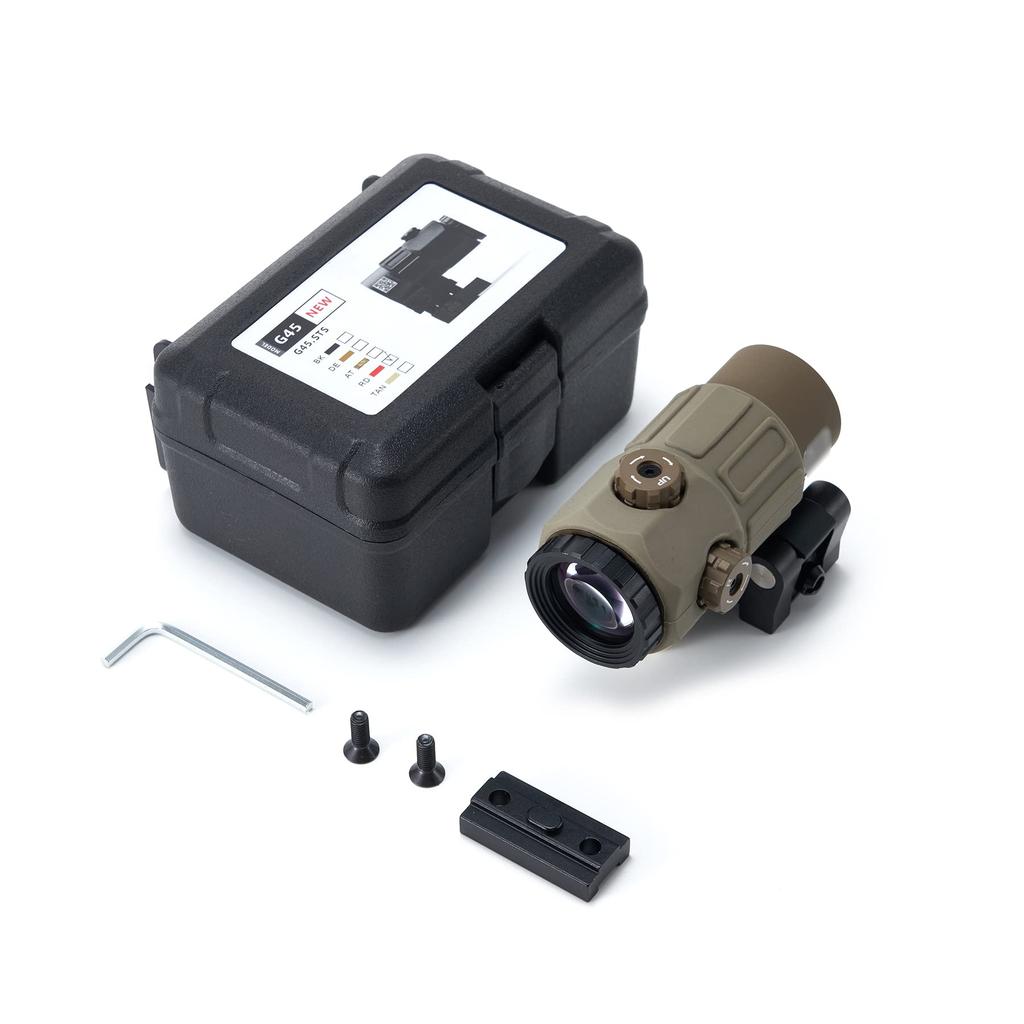

Secure the G45 and STS mount with the included screws. Use the included riser (raising plate) depending on the height of the dot sight you are using.
If you use the riser, use the long screw; if not, use the short screw.
Right-handed users should mount the G45 so that it tilts to the left. Left-handed users can mount it so that it tilts to the right.
How to Adjust the STS Mount

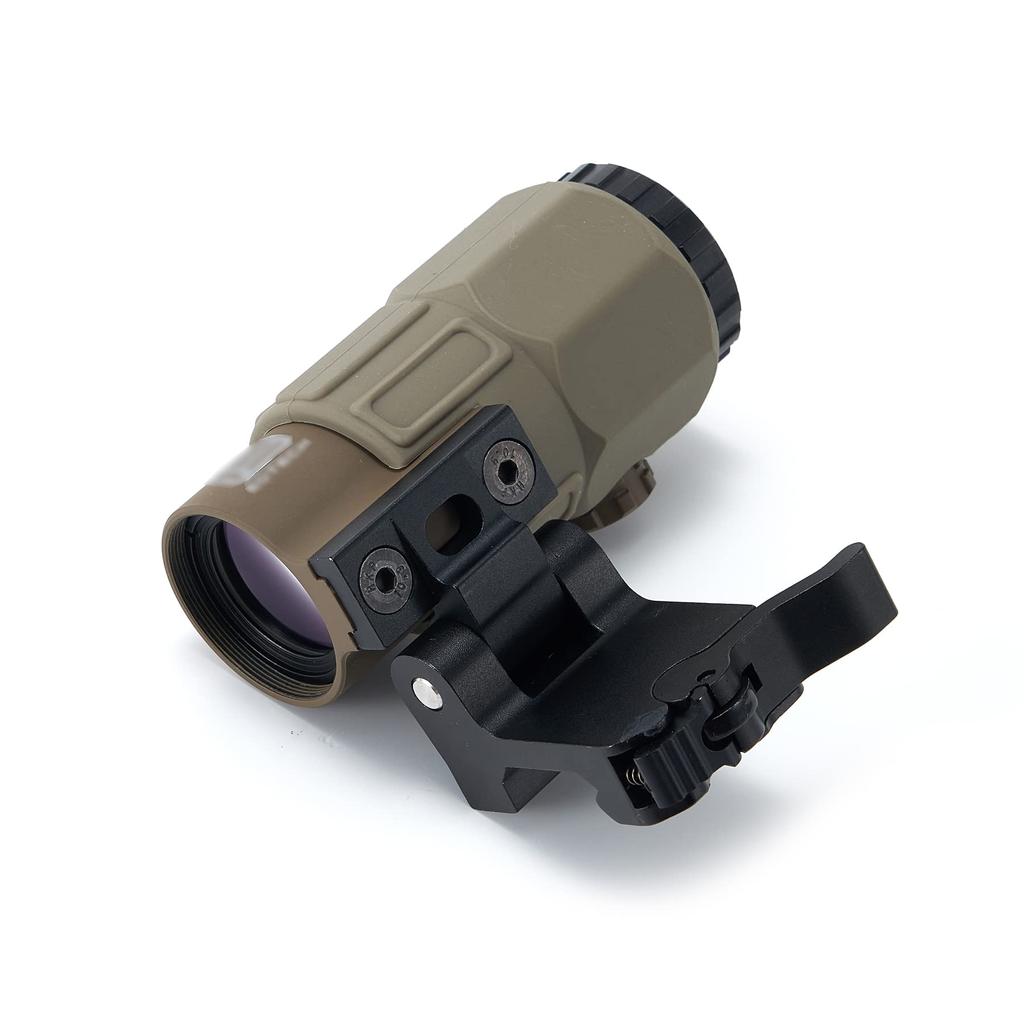

The convenient QD lever mount allows for one-touch attachment and detachment to 20mm rails.
To attach to a 20mm rail, first press the lock button and raise the QD lever. Then, place the mount on the rail and close the QD lever.
If it is loose or the lever is too tight to close, adjust it by turning the flathead screw on the opposite side of the QD lever.
Specifications
G45 Body Dimensions: 100 x 50 x 80mm
Weight: Approx. 335g (including mount)
Surface Finish: Anodized
Material: Aluminum Alloy
Magnification: Approx. 5x
Eye Relief: 2.6 inches
Center Adjustment: Yes
Focus Adjustment: Yes
Notes
The G45 cannot be used as a sight alone. Use it with other optical sights with equal magnification, such as red dot sights or holographic sights.
As this is a replica, there may be slight scratches and dirt, although new. There may also be some dust inside the lens, but this does not affect its usability.
During inspection, we check whether the mount moves properly and whether it rattles in its fixed position. Scratches may occur during this process.
Always adjust the mount with the QD lever open. Turning the screw while the lever is closed will cause damage. Damage caused by this is not covered by the warranty.
New Lens: To accommodate the compact design, the lens has been updated to a smaller, higher-grade lens, providing an extremely long eye relief of approximately 2.6 inches! This eliminates the need to bring your eye closer to the booster than necessary, making it easier to aim even with thick goggles.
Introducing the brand-new 5x Booster G45! Use it with a red dot sight or holographic sight to create a simple 5x magnification scope!
Realistic Engraving & Matte Finish: The lightweight and durable aluminum alloy body has a matte finish that matches any airsoft gun or red dot sight. The logo is realistically reproduced on both sides.
Color: Tan
Size: Total Length: Approx. 100mm, Width: Approx. 50mm, Height: Approx. 80mm
Weight: Approx. 335g
Magnification: Approx. 5x
Objective Lens Diameter: 25mm
Linear Field of View: 23.3 feet @ 100 yards
Field of View: 7.28 degrees
Important: This product is a telephoto booster and does not project a dot or sight on its own. Please use it in conjunction with a dot sight. If you use a dot sight alone, the dot may appear distorted due to its magnification. The EXPS3 type circular dot is projected properly.
