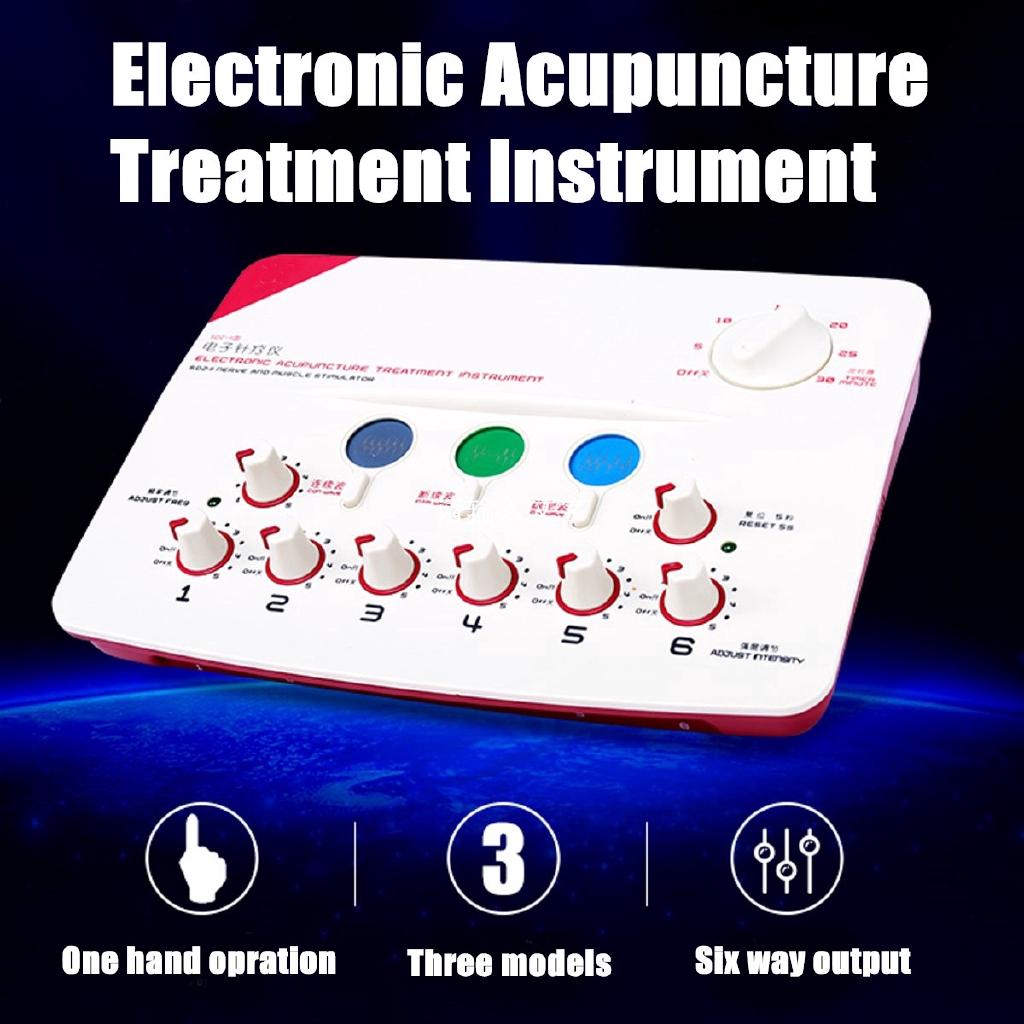

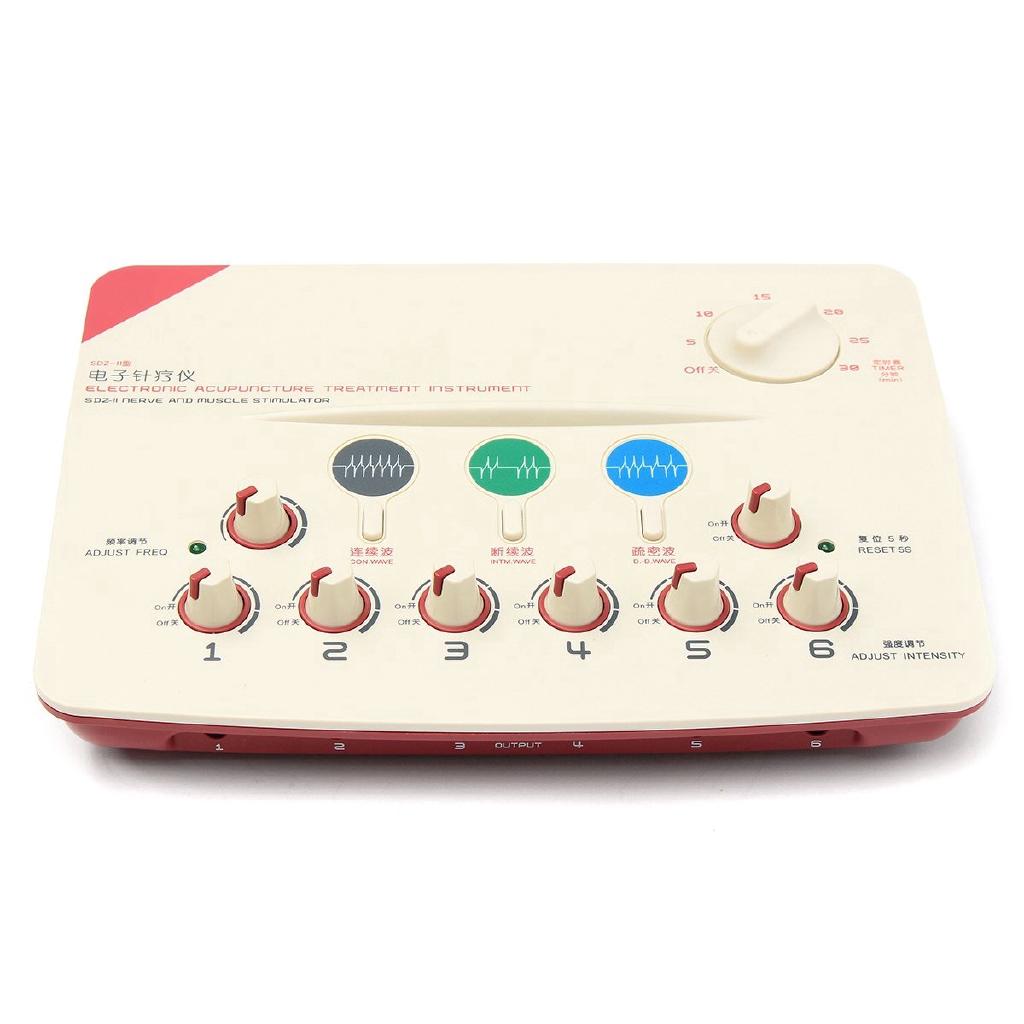

Name:Electronic Acupuncture Treatment Instrument
Model:753593
Specifications
Color:as pictures
Output Power:10VA
Output Current Limit:≤10mA(250Ω load impedance)
Output Pulse Waveform:asymmetric bidirectional
Output DC Component:0mA
Number Of Output Pulses:6
Output Pulse Width:0.2ms±30%
Maximum Output Power:0.3VA(250Ω load impedance)
Output Pulse Frequency:(1~100Hz adjustable, tolerance ± 15%)
Size:235*78*40mm
Features
-Six kinds of output, pulse waveform.
-Can be connected to the battery.
-Electrode patch, connected to the connecting wire.
-Cooling holes to prevent the host temperature is too high.

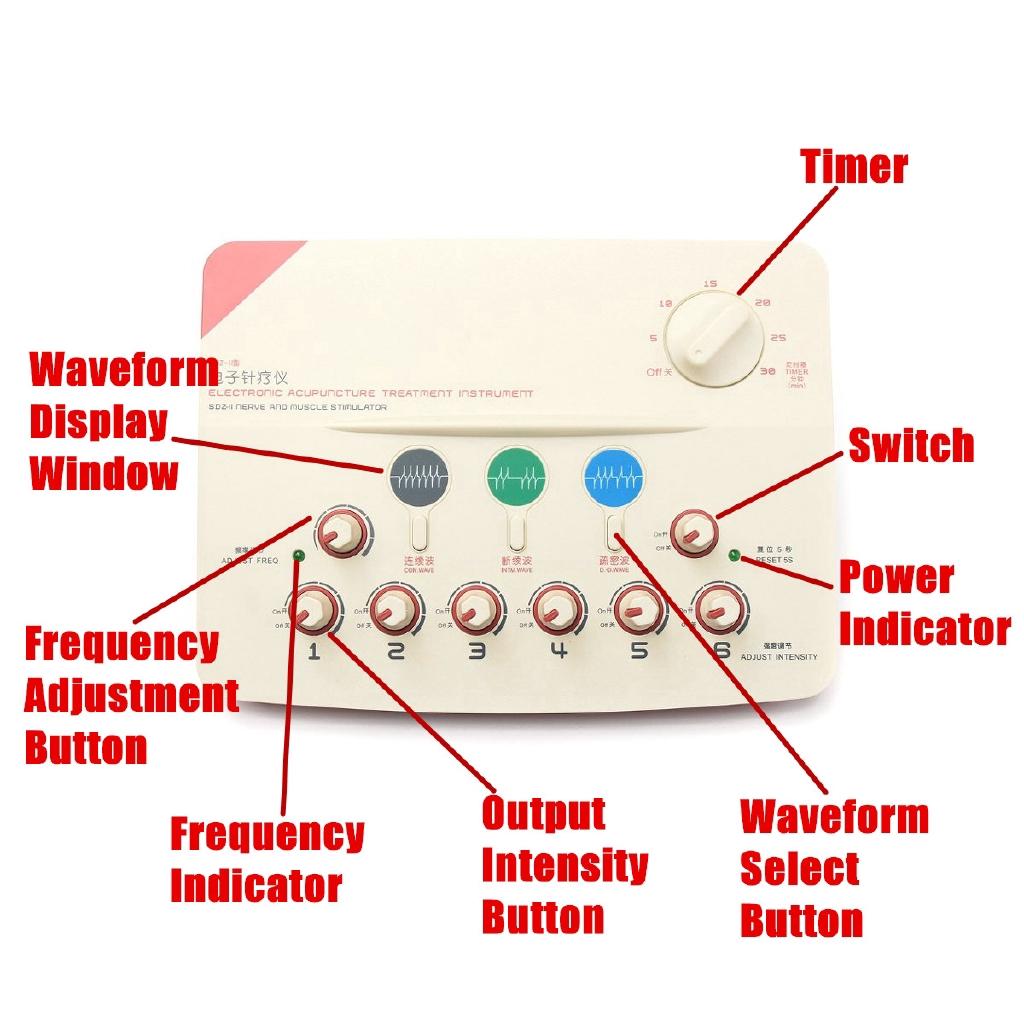

Instructions
-Insert one end of the output wire into the main unit.
-Connect the other end of the output wire to the skin electrode or the pin electrode metal clip.
-Remove the release sheet from the skin electrode.
-Place the electrode patch in the area where the treatment is needed.
-Connect the power to the switch.(Turn all knobs back to zero before turning on the switch)
-Select the Wave button.
-Adjust the frequency adjustment button as needed.
-Adjust the pulse strength of the corresponding output port.
-The knob timer selects the appropriate working time.(Close the instrument after treatment to reset all the buttons to zero)
Note:Due to the manual measurement,there might be some error.

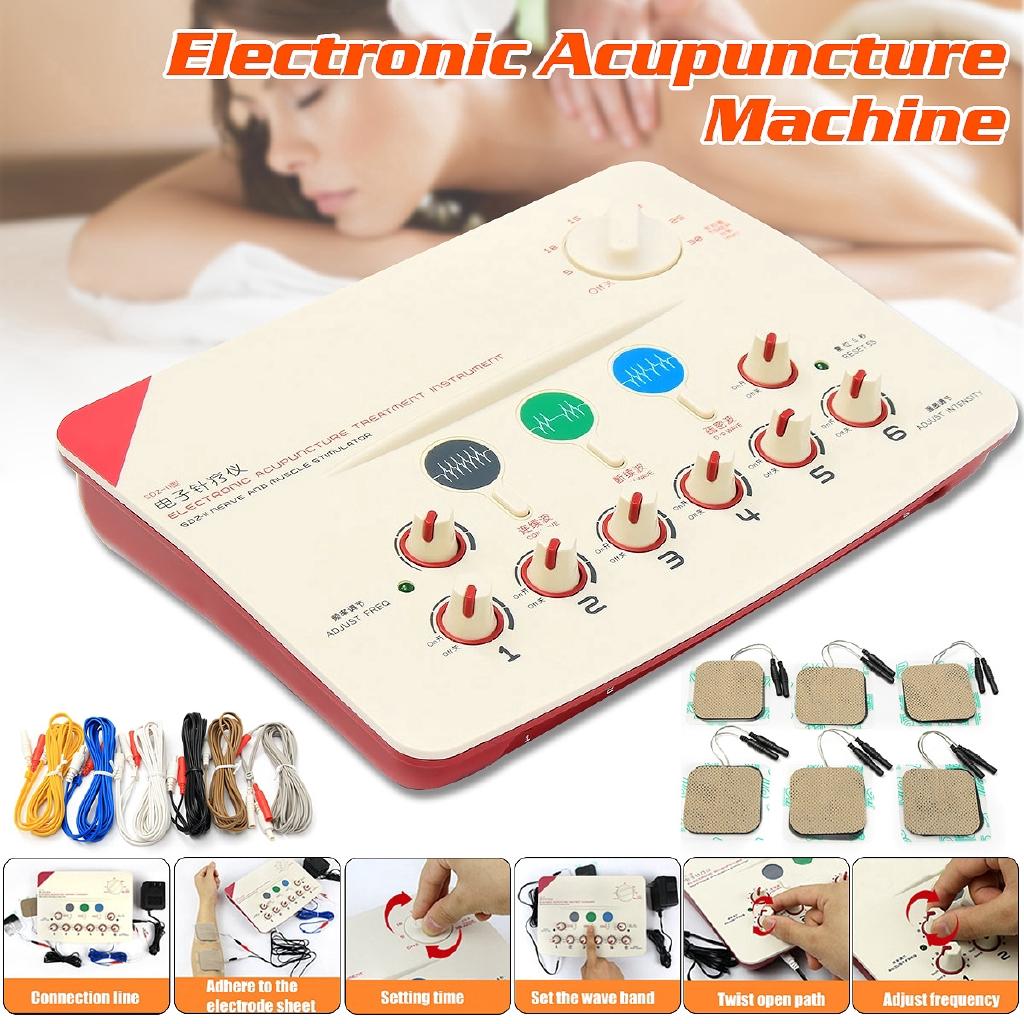

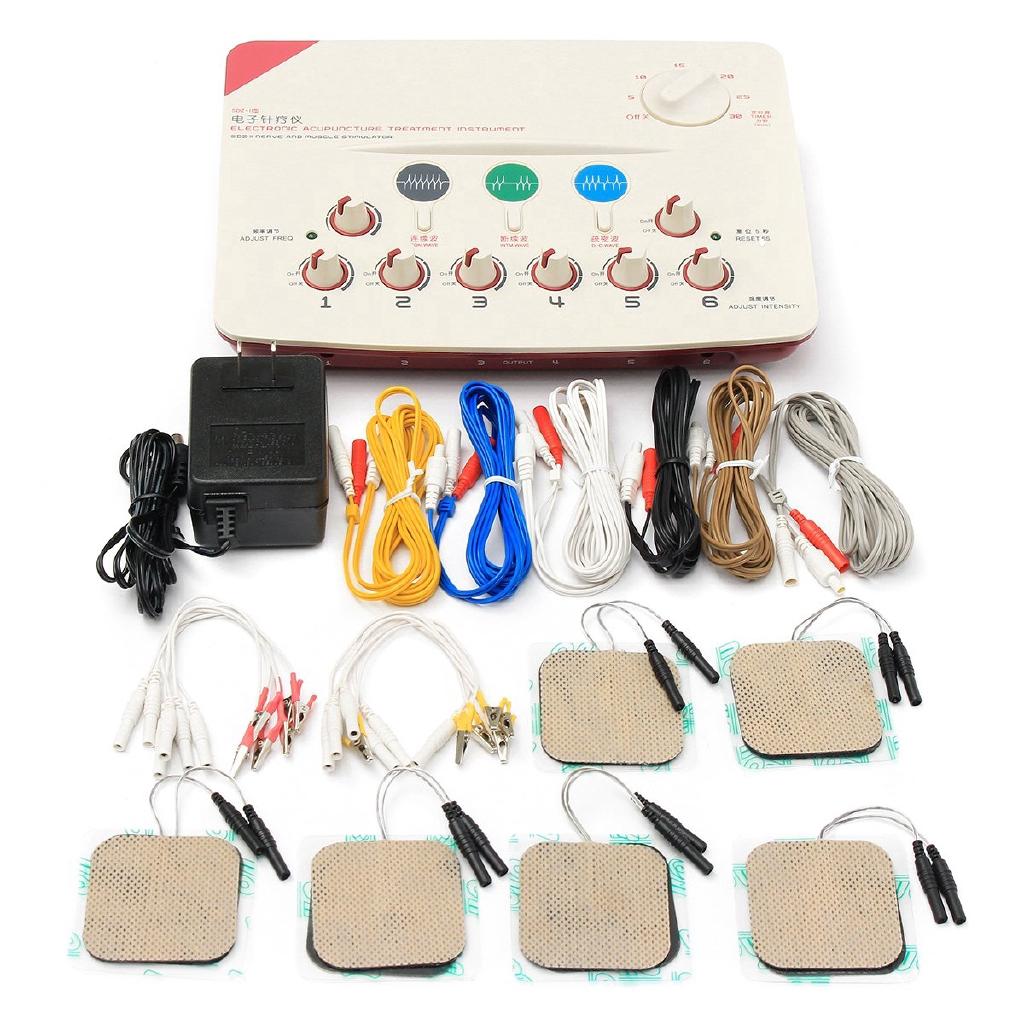

Package Included
1 x Electronic Acupuncture Treatment Instrument
2 x Needle Electrode Metal Clip
6 x Skin Electrode
6 x Output Electrode Line
2 x Power Cable
(With US plug,distribute the adapter according to your country)
