Feature:
1. Convert Electrical Energy into Mechanical Energy: Adopting a plunger shaped structure, good quality silicon steel sheet converter, can convert electrical energy into linear motion mechanical energy
2. Coil Improve Overall Safety and Reliability: Because of coil sealed and poured, greatly improved the waterproof performance, thereby improving the overall safety and reliability
3. Install Vertically or Horizontally: There are vertical and horizontal mounting holes on the mounting plate, can be installed vertically or horizontally, which greatly expands the scope of application, very practical
4. Fast Pull and Release: The yoke and armature are made of good quality silicon steel sheet, which has beautiful appearance, small size, light weight, fast pull and release, and low power consumption
5. Good Electromagnetic Performance: Magnetic core is made of excellent silicon steel sheet, possess good electromagnetic performance, good heat dissipation performance, neat arrangement, and high magnetic flux density
6. High Conduction Current: Tinned copper have low resistance, high conduction current, and anti oxidation
7. Operating Mechanisms Remote Control: Used in circuits with AC 50Hz, 60Hz, rated voltage 220V, as a remote control of mechanical equipment, automation systems, and various operating mechanisms
Specification:

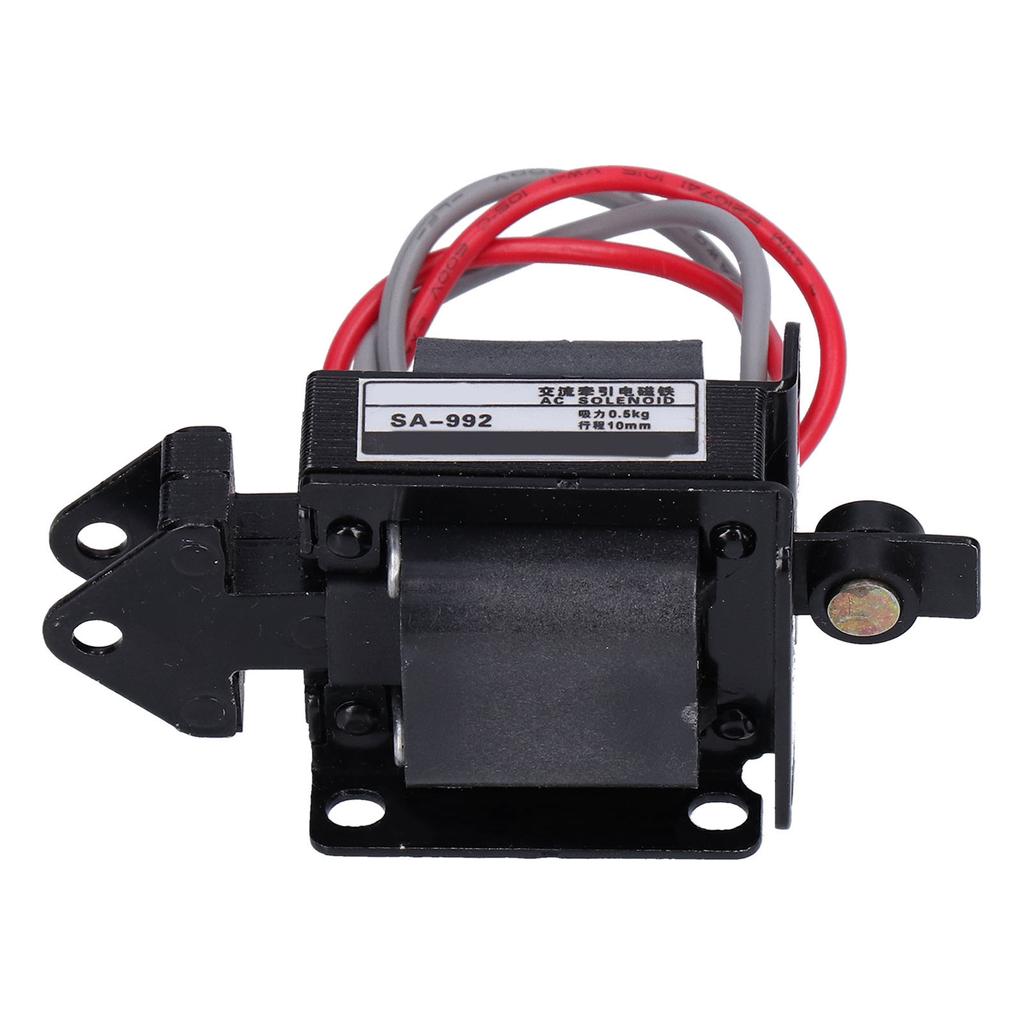

Item Type: Push Pull Electromagnet
Product Model: SA992
Rated Voltage: AC220V
Rated Frequency(Hz): 50 or 60Hz(2 s)
Current Characteristics: AC
Action Form: Push pull dual purpose
Purpose: Traction
Stroke: Approx. 10mm 0.4in
Suction Power: 0.5KG
Insulation Category: Equivalent type A insulation
Insulation Resistance: DC500V above 50M Ohm
Power Frequency Withstand Voltage: AC1500V for 1 minute
Temperature Rise: Below 85 celsius
Rated Operating Frequency 60percent : 1500 Timeshour.
Package List:
1 x Push Pull Electromagnet
Note:
Please wait for the maximum continuous power on time for 1 minute before using it, exceeding the specified use is the cause of the coil burnout.Convert Electrical Energy into Mechanical Energy: Adopting a plunger shaped structure, good quality silicon steel sheet converter, can convert electrical energy into linear motion mechanical energy
