Description:

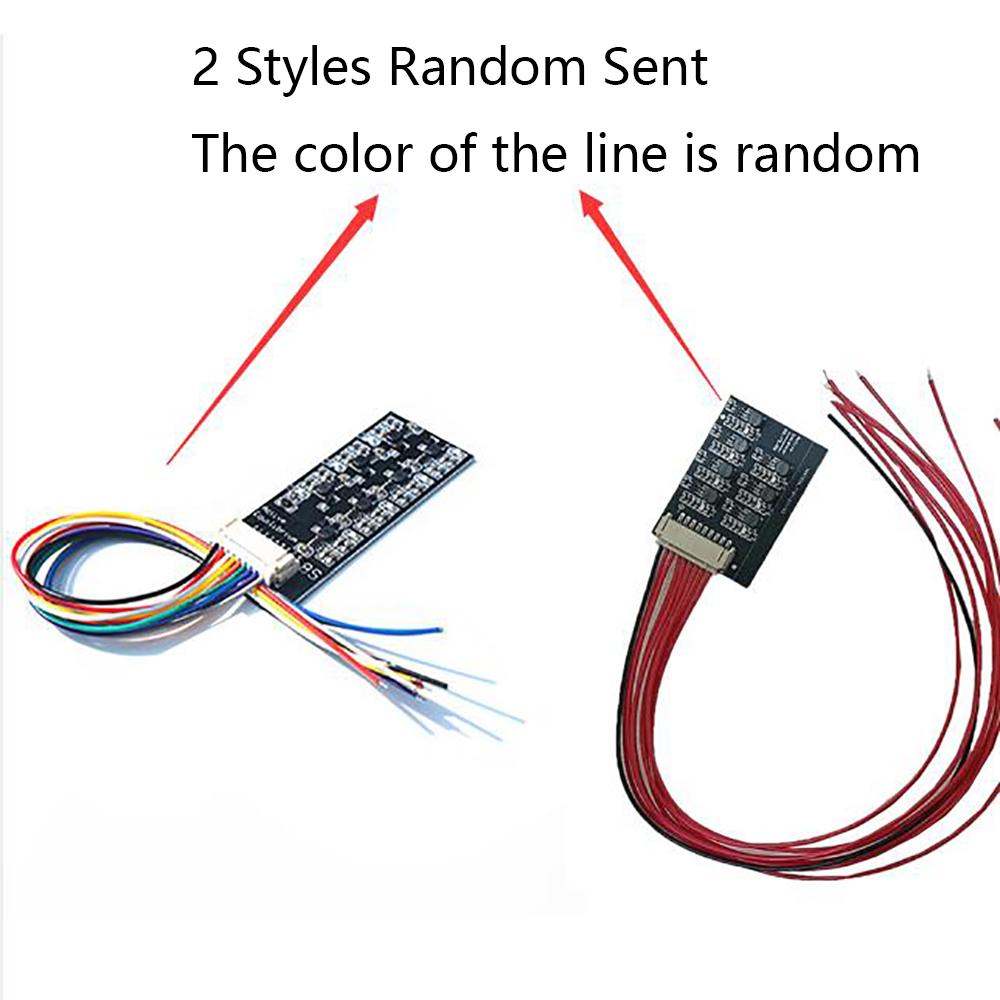

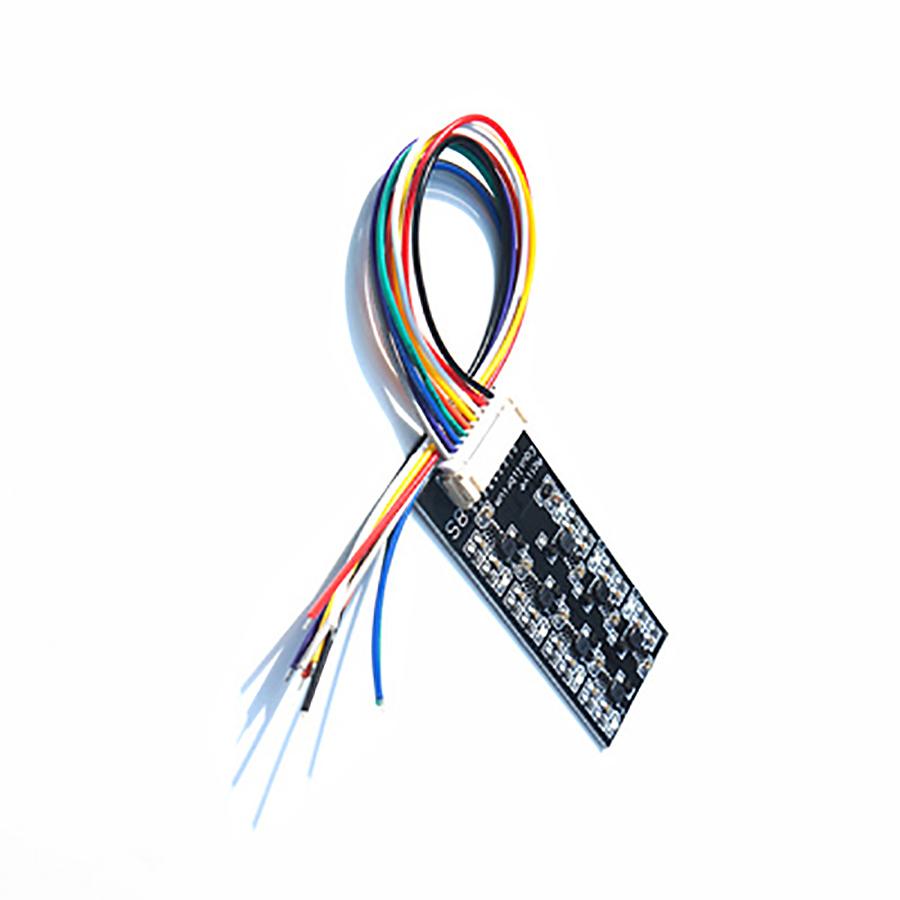

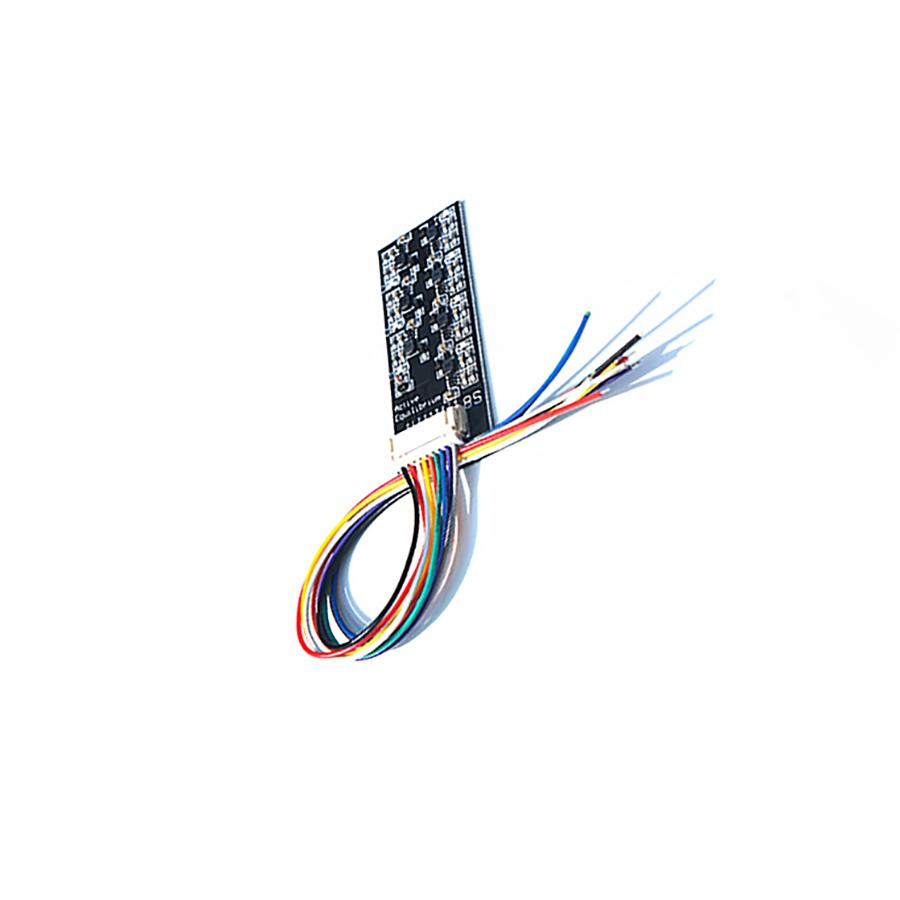

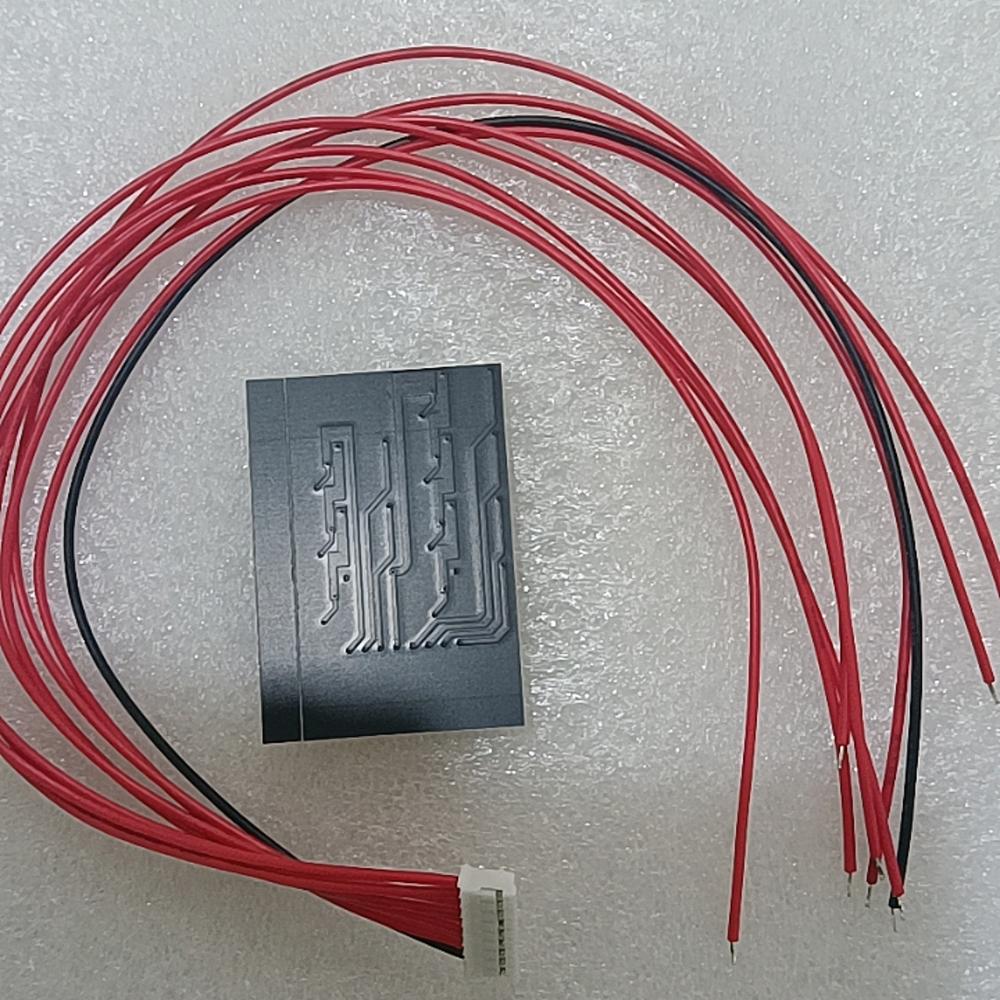

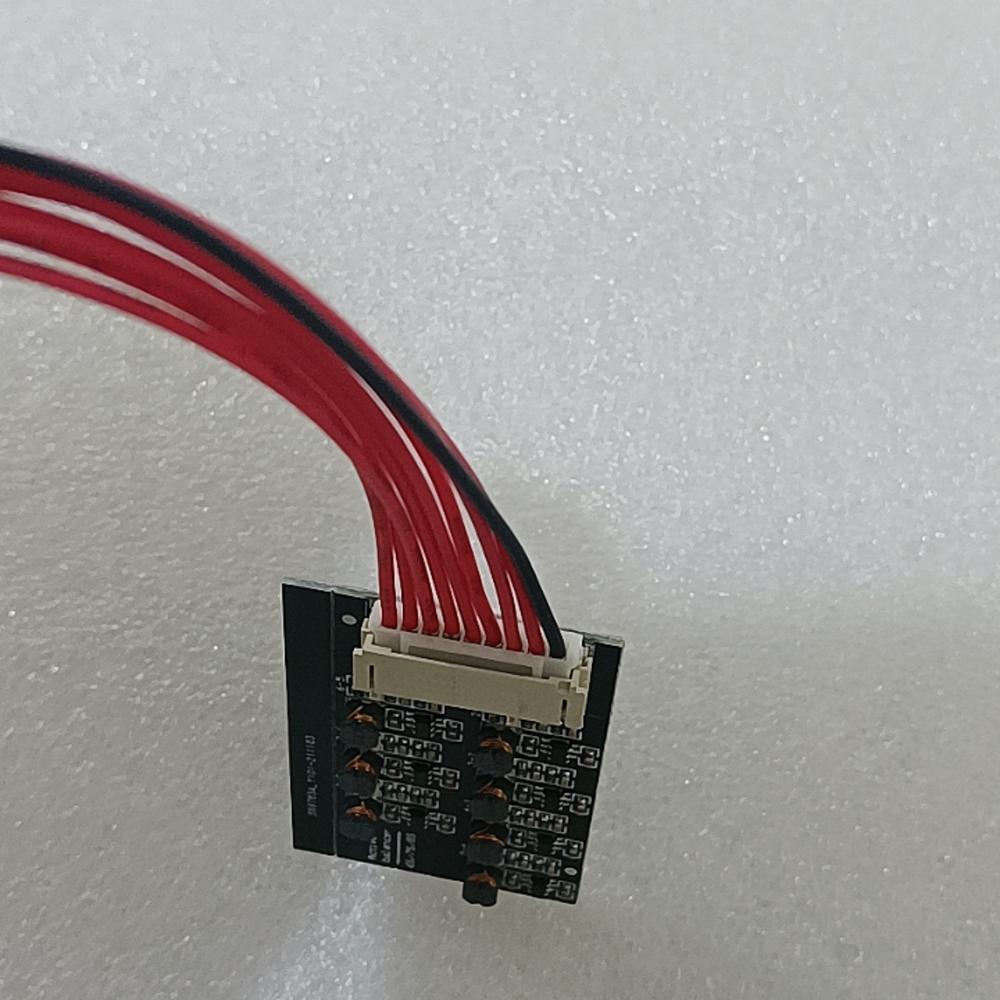

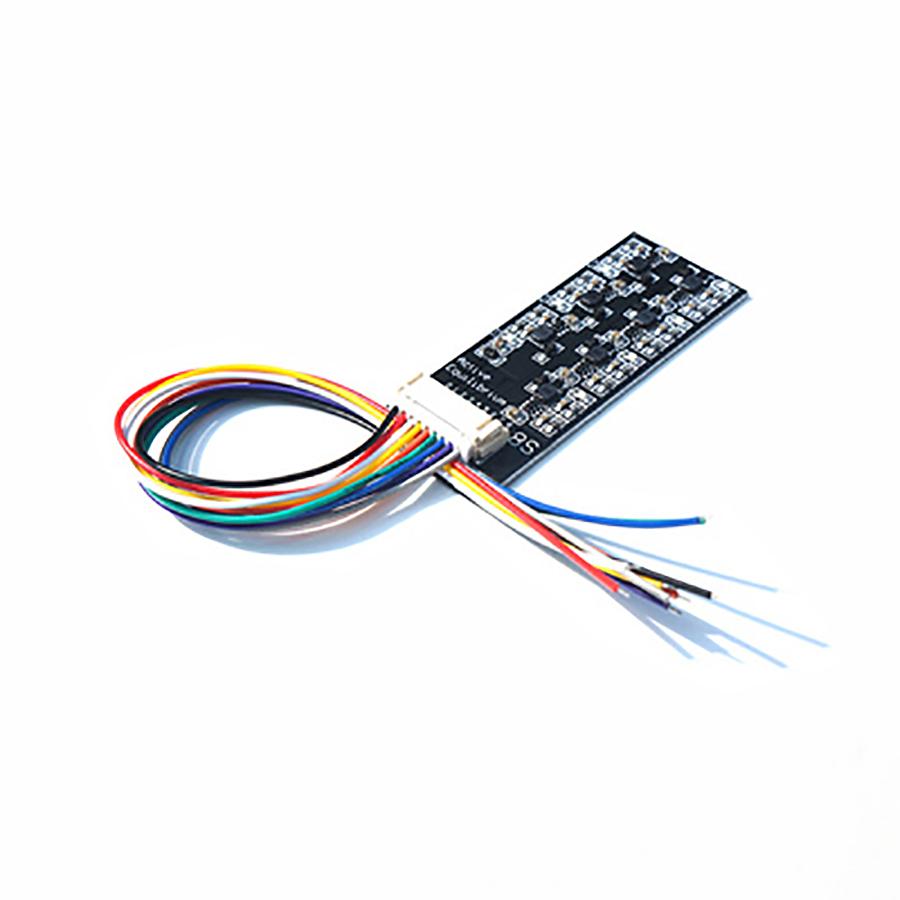

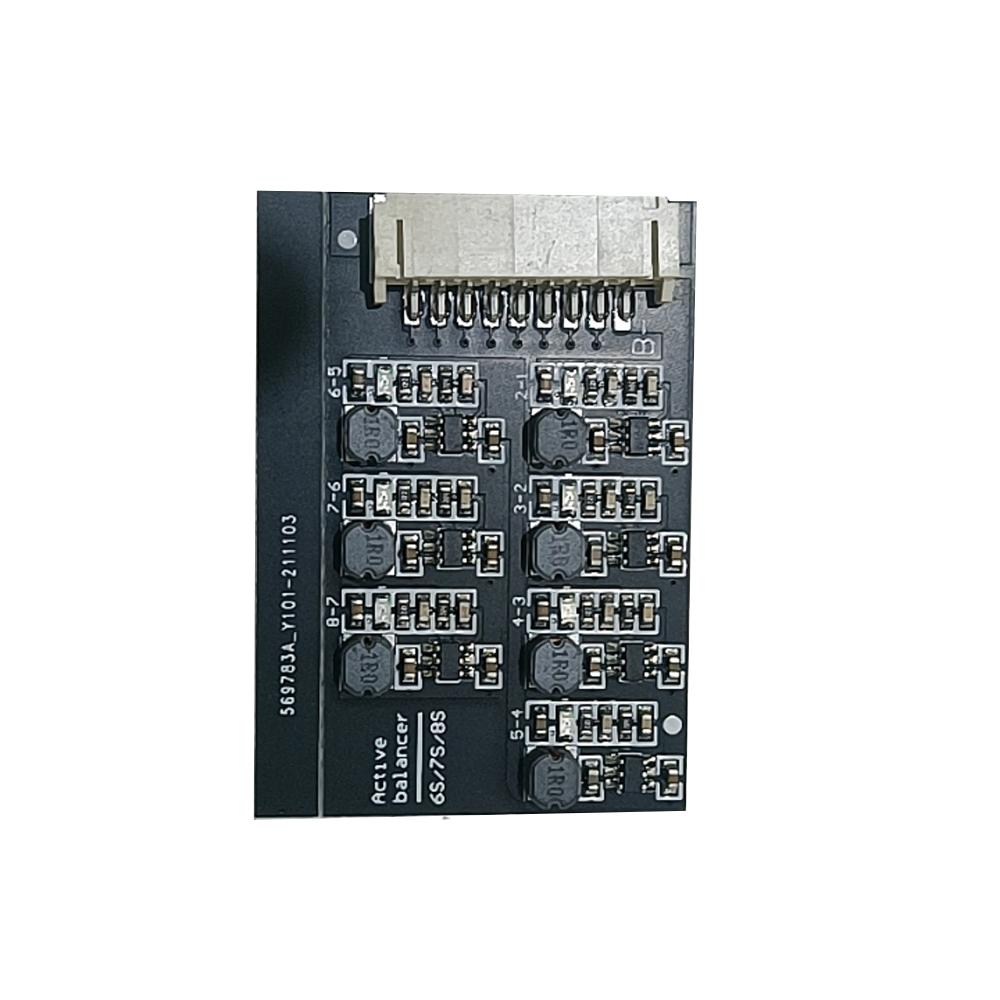

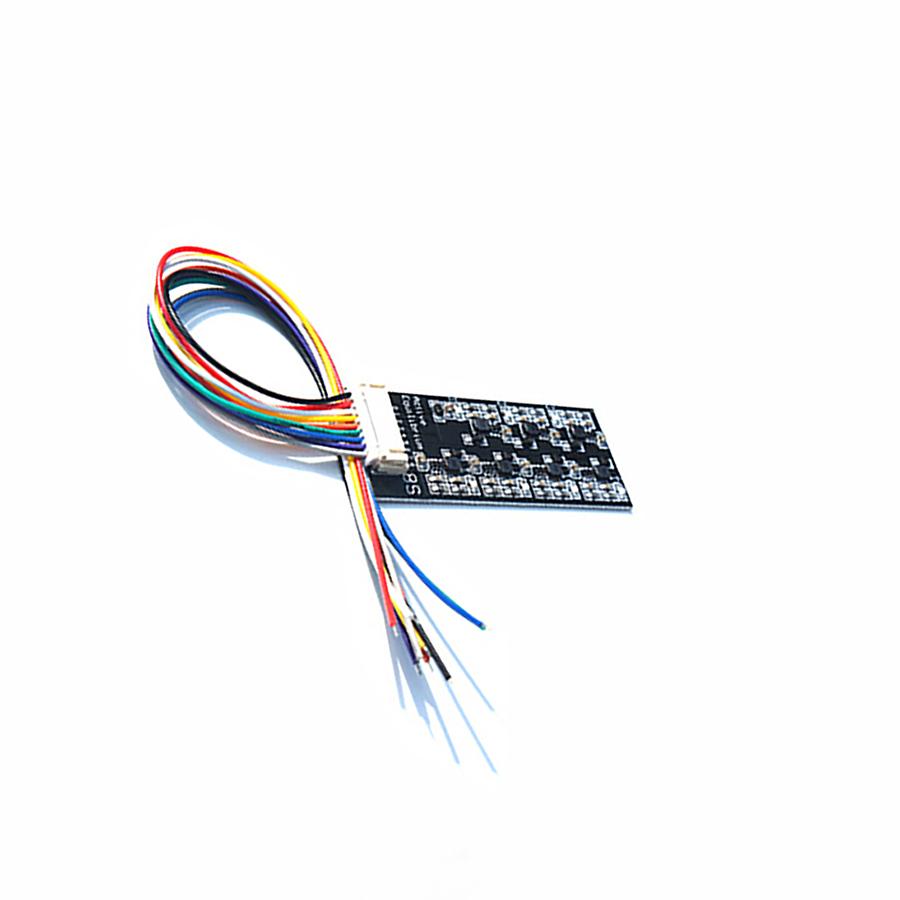

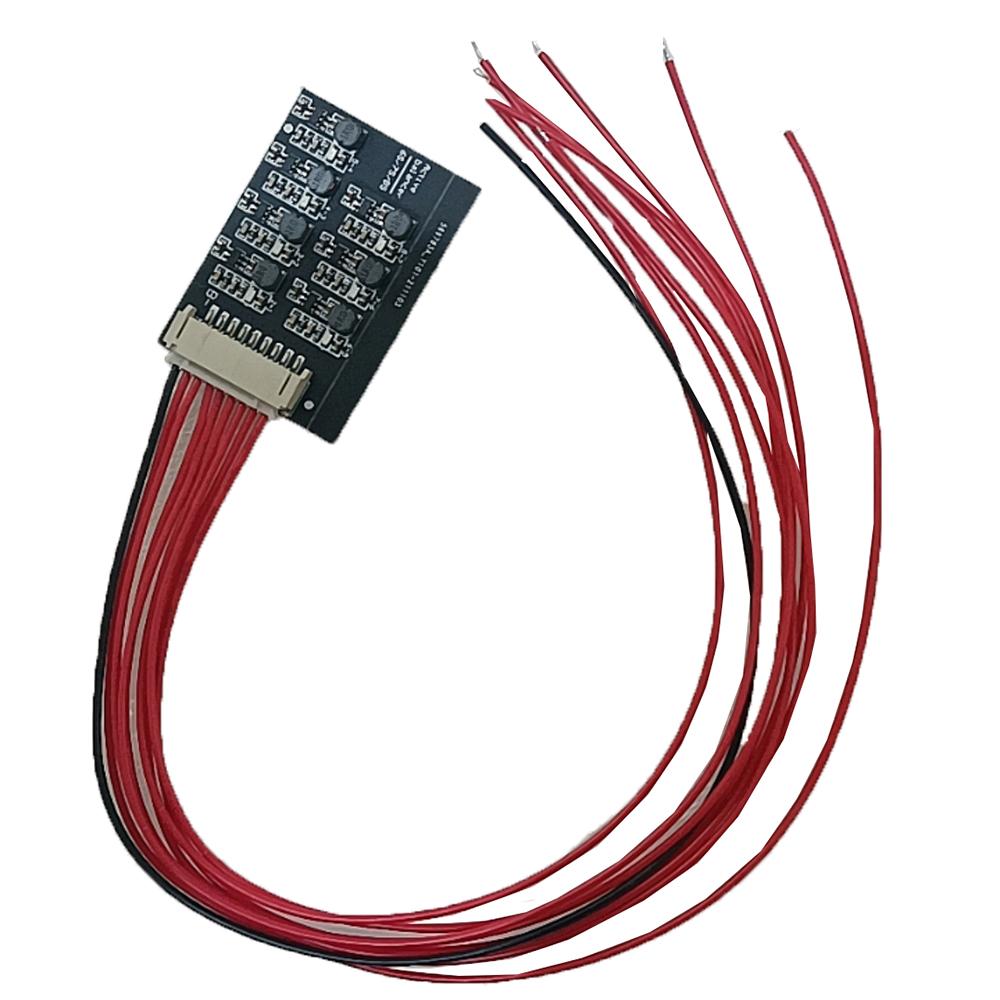

-8s balancing board:s suitable for 2S-8S battery pack
-8S line Length: 20CM
Inlude: 1PC
Quantity of series connection: 8S (both can be down-converted for backward compatibility)
Applicable battery: 3.2V/3.65V/3.7V/4.2V lithium battery or lithium iron phosphate
Not applicable to: Farad capacitors, lithium titanate batteries
Balance method: active energy transfer
Balanced efficiency: 92%
Balance logic: Take two adjacent cells as the unit, and multi-column synchronization is carried out
Trigger condition: Adjacent voltage difference>0.1V
Balance current: 800ma
Balance stop: adjacent voltage difference <0.03V
Equalization period: full voltage section (including charging, discharging, idle)
Low voltage protection: battery voltage is lower than 2.5V
Sleep power consumption: 2uA low power consumption, the battery can be idle for a long time
Balance indicator: light on means balance is in progress, light off means balance is complete, flashing means battery internal resistance is large or the string is dropped or dangling
Built-in installation: Suitable for internal battery installation, long-term use
Other instructions: Use with the protection board or the protection board with passive equalization at the same time, without affecting each other
Wiring logic: take No. 0 (B-) as the total negative pole to connect in the same direction, can not be wrong sequence or reverse connection
