Feature:
1. [USB2.0 Net Interface] W21 is a highly integrated single chip MIMO, wireless LAN, USB2.0 net interface controller, which complies with wireless ultra high throughput IEEE 802.11ac draft 2.0 and 802.11n specifications.

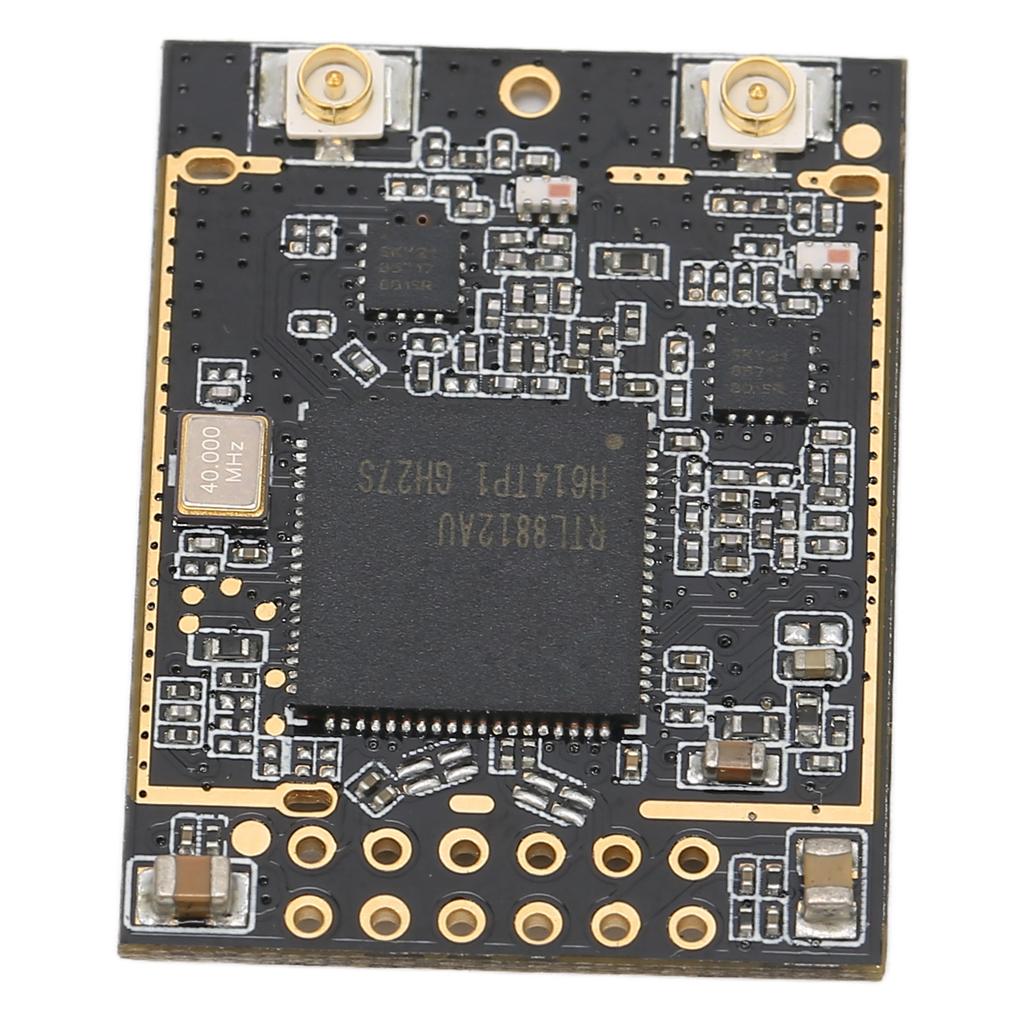

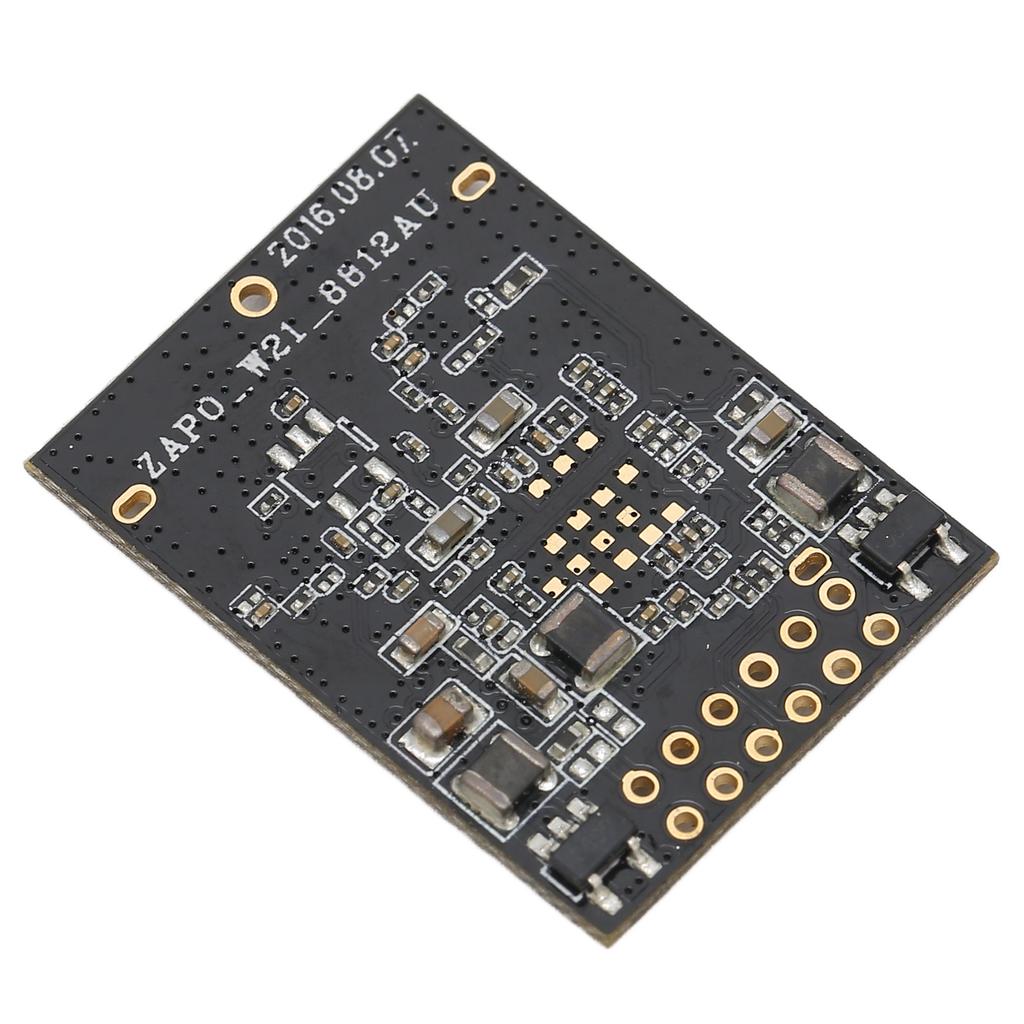

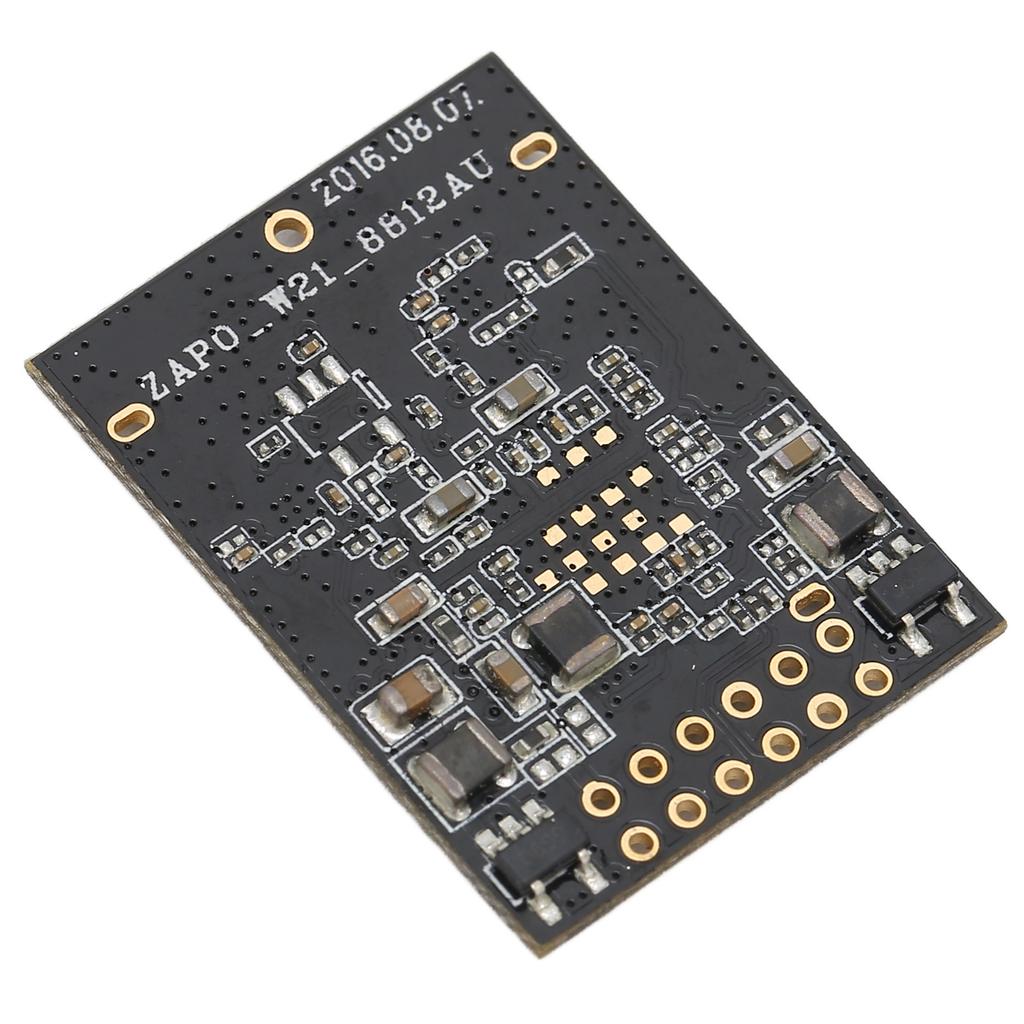

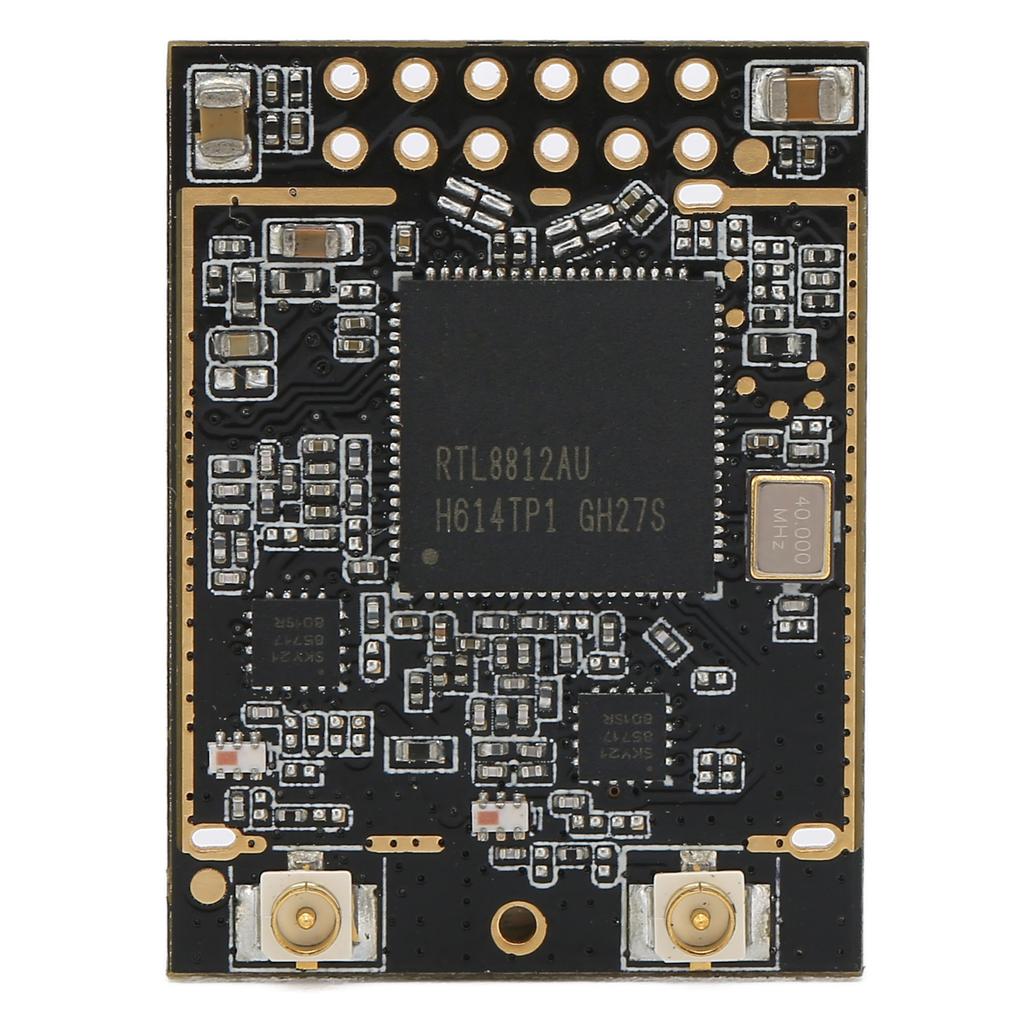

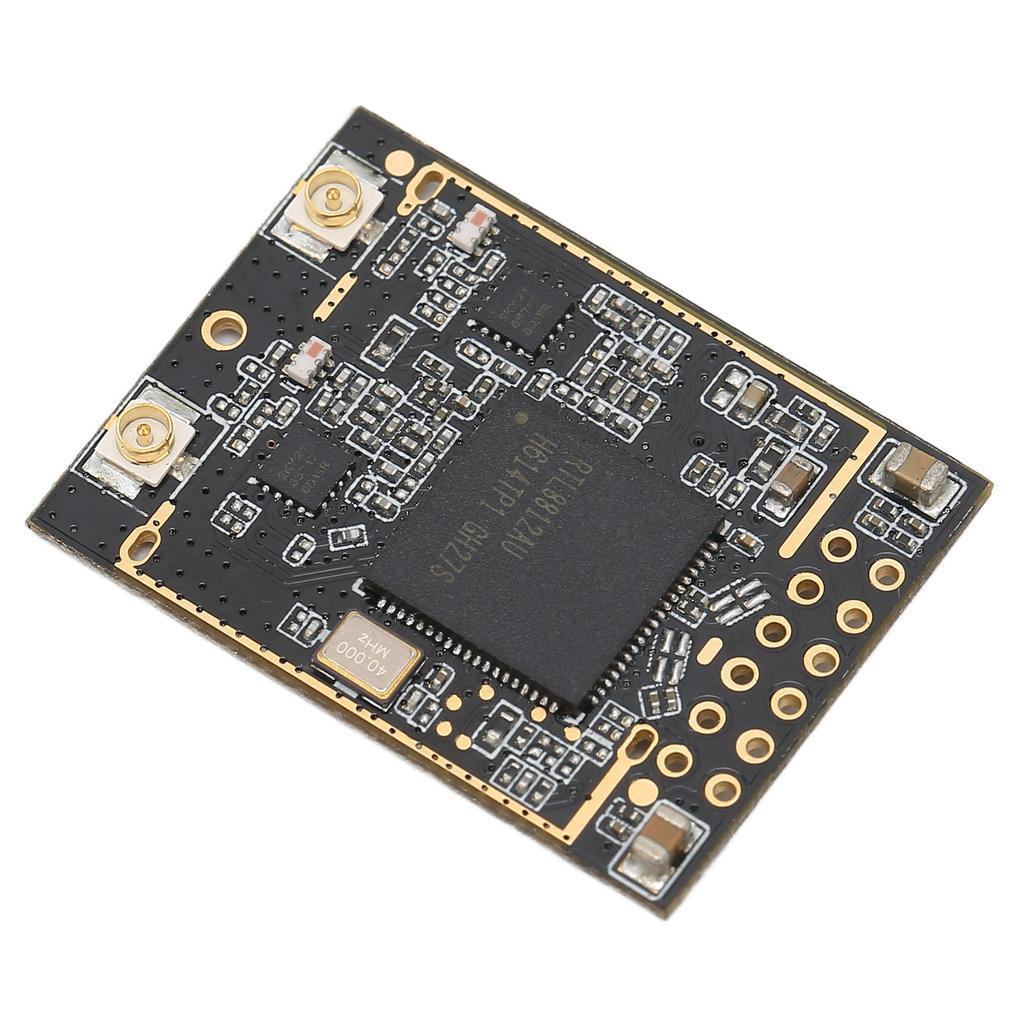

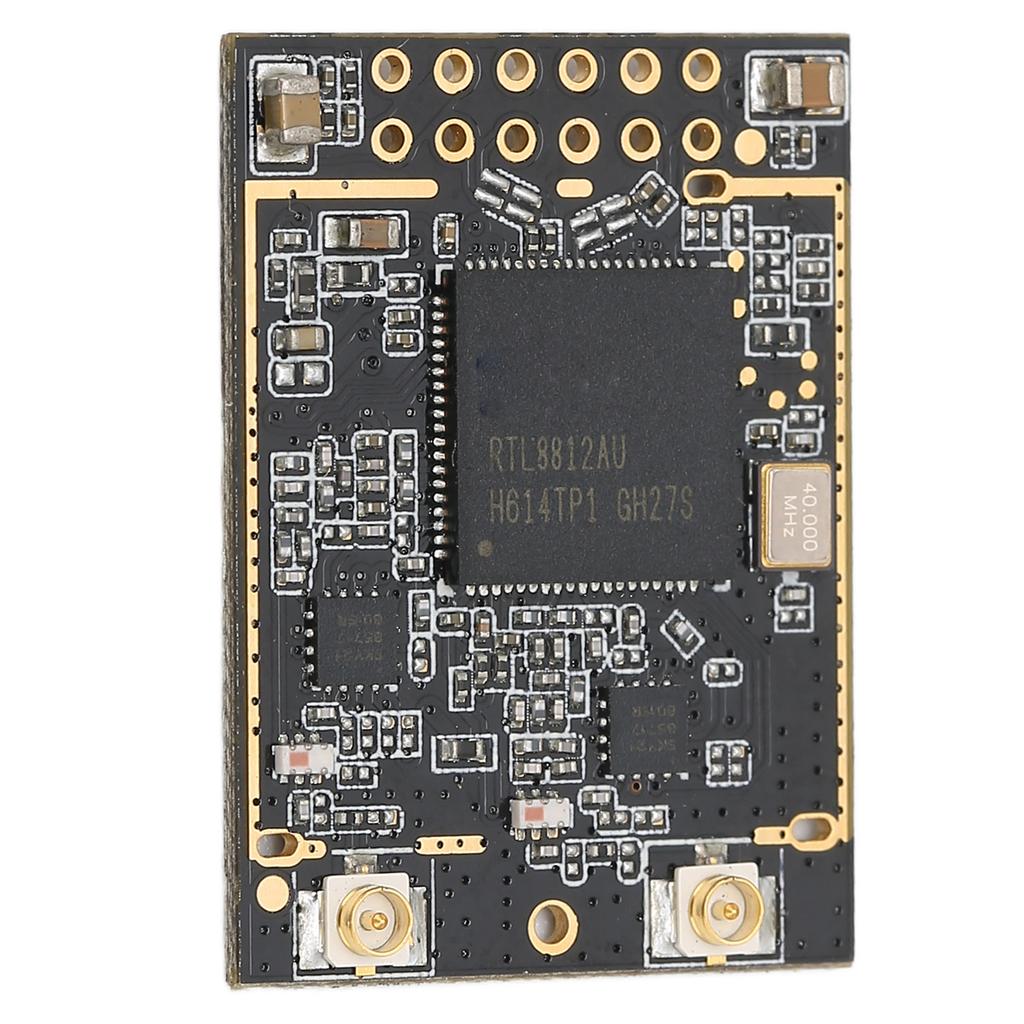

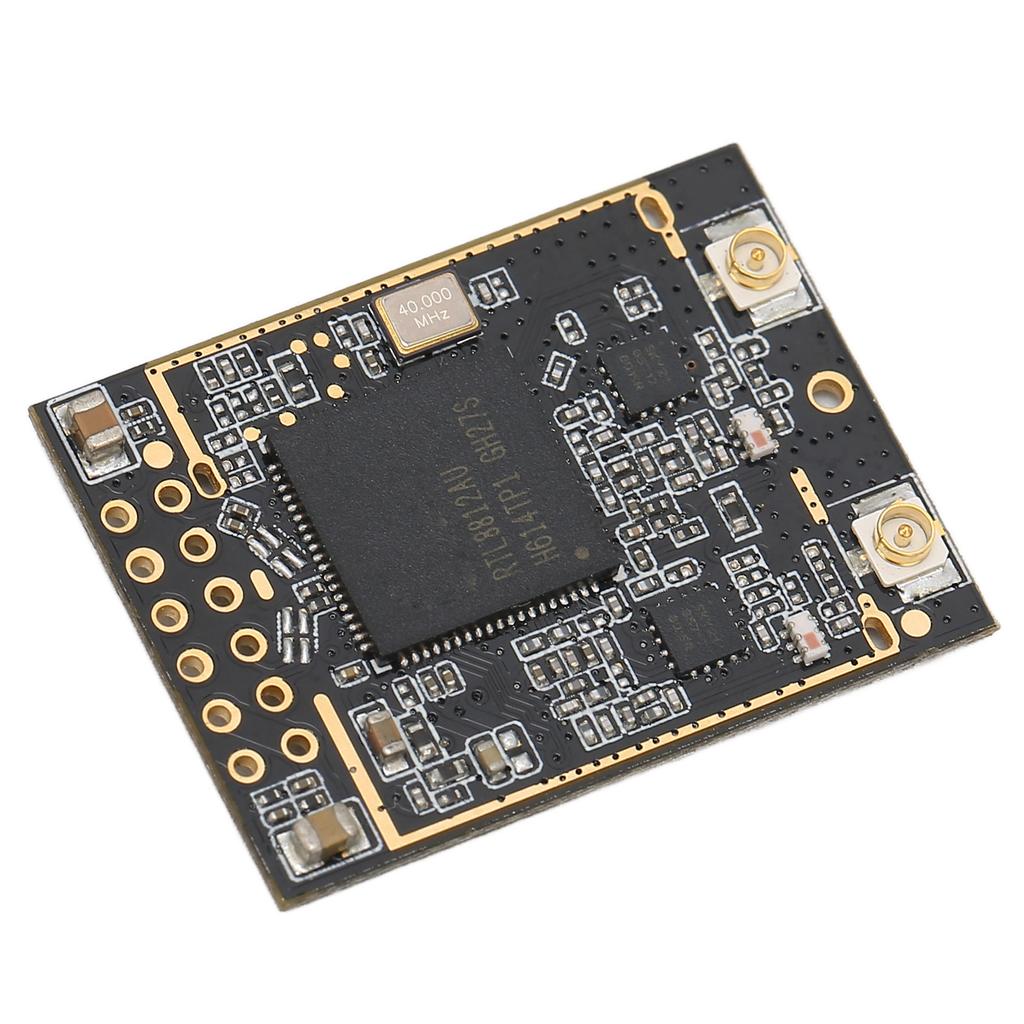

2. [High Performance] 1200m WiFi module for RTL8812AU provides a complete solution for high performance wireless clients.
3. [Radio Frequency] Supports 2T2R baseband, 2.4G and 5G frequency bands and radio frequency, to provide you with the maximum help.
4. [WIFI Direct Function] Wifi module supports WIFI Direct function, which can easily build WIFI P2P PAN net for your convenience.
5. [Operating System] Wifi module supports for Android, for Win 8, for Win 7, for Vista, for Linux, for Win CE, for Windows XP and other operating systems.
Specification:
Item Type: Wifi Module
Material: PCB
Model: For W21
Chip Solution: For Realtek RTl8812AU
Standards and Protocols: IEEE802.11a b g n ac 2T2R
Working Frequency: 2.4G: 2.4000GHz 2.4835GHz, 5G: 5.150GHz 5.825GHz
Working Channel: 1 13Channel
Modulation Method: 802.11b: CCK (11,5.5Mbps) QPSK (2Mbps) BPSK (1Mbps)
802.11 a g: OFDM
802.11n: MCS0 7
802.11ac: MCS0 9
Transmission Rate: 11n: 6.5 72.2 Mbps(20MHz Bandwidth), 13 150Mbps(40MHz Bandwidth)
11g: 54 48 36 24 18 12 9 6 Mbps
11b: 11 5.5 2 1 Mbps
RF Antenna: External antenna can be connected
Security: WEP, TKIP, AES, WPA, WPA2
Working Temperature: 0 degrees C to +70 degrees C
Relative Humidity: 10 90percent (Non Condensing)
Operating System: For Android, for Win 8, for Win 7, for Vista, for Linux, for Win CE, for Windows XP and Other Operating Systems.
Package List:
1 x
Wifi Module
